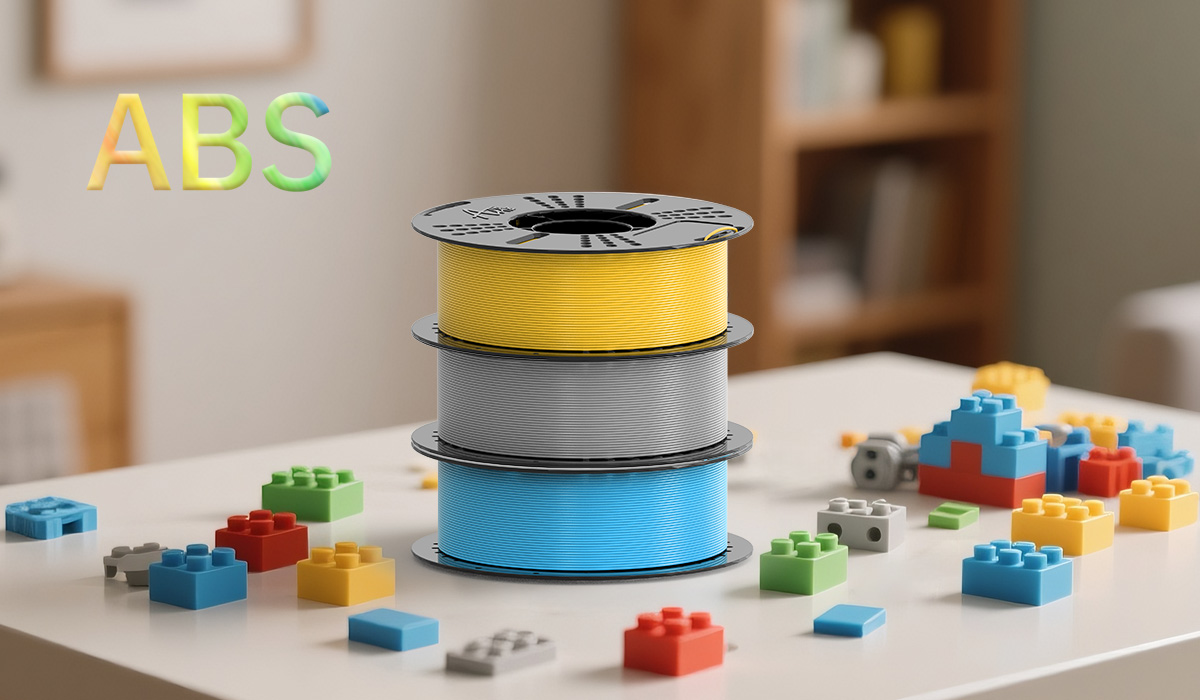

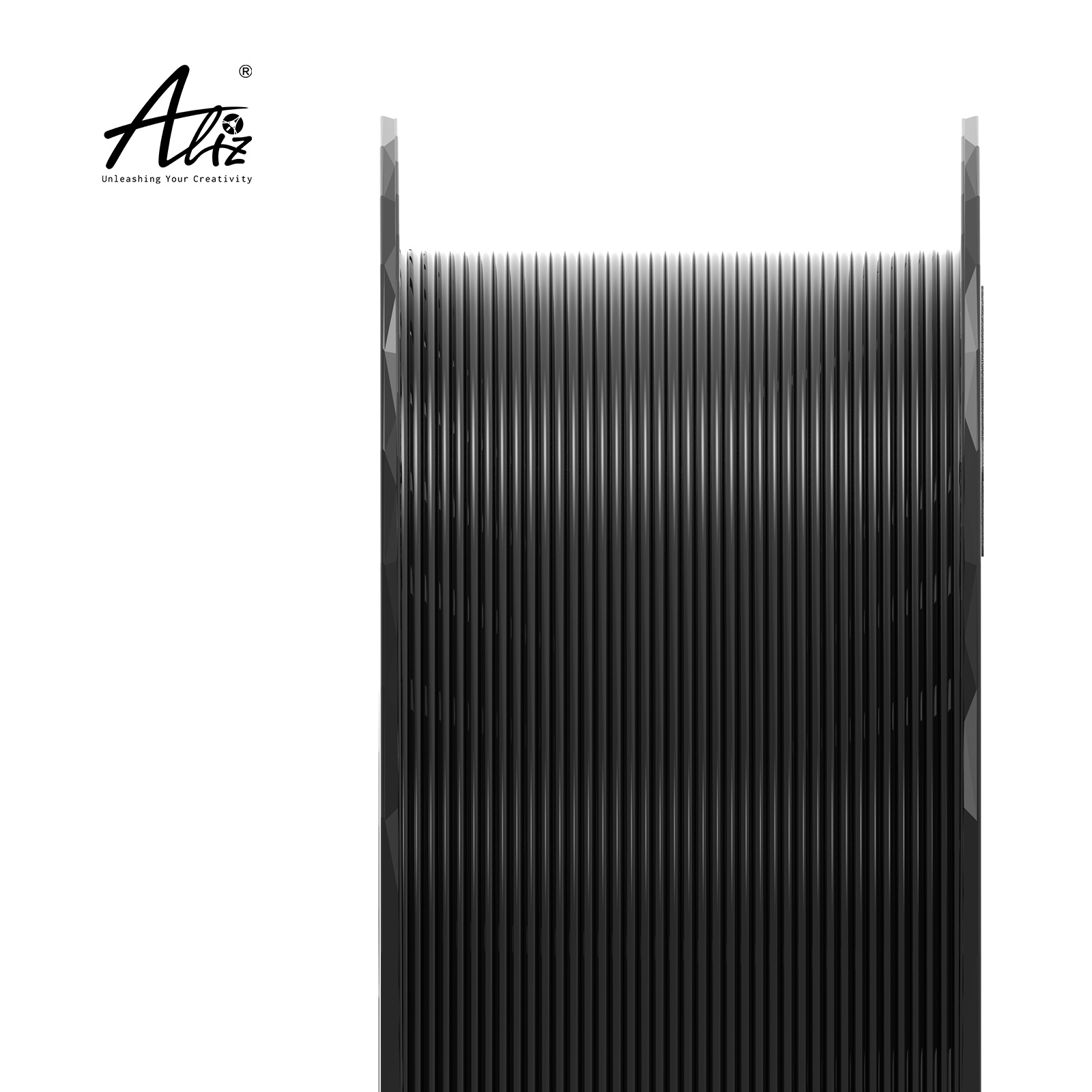

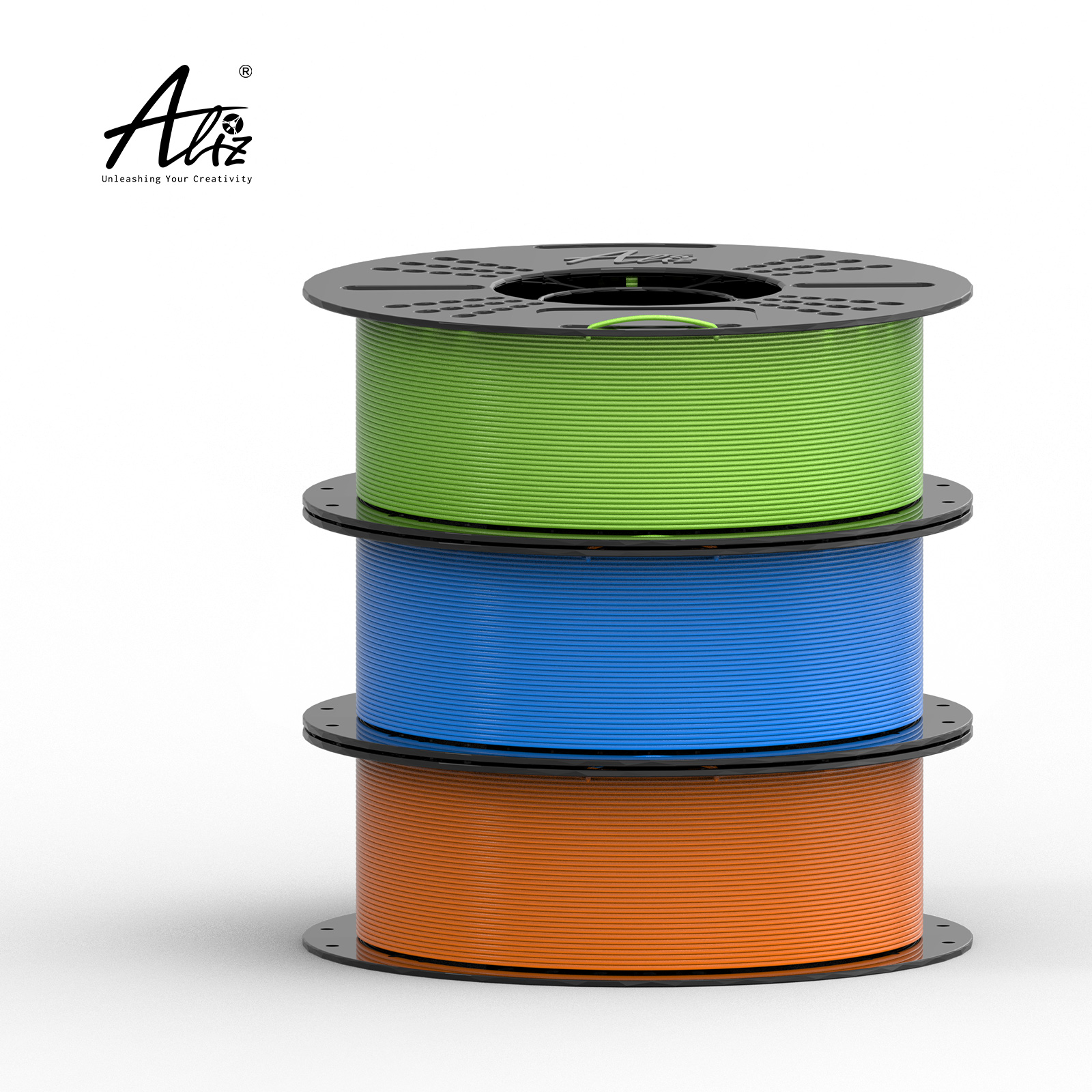

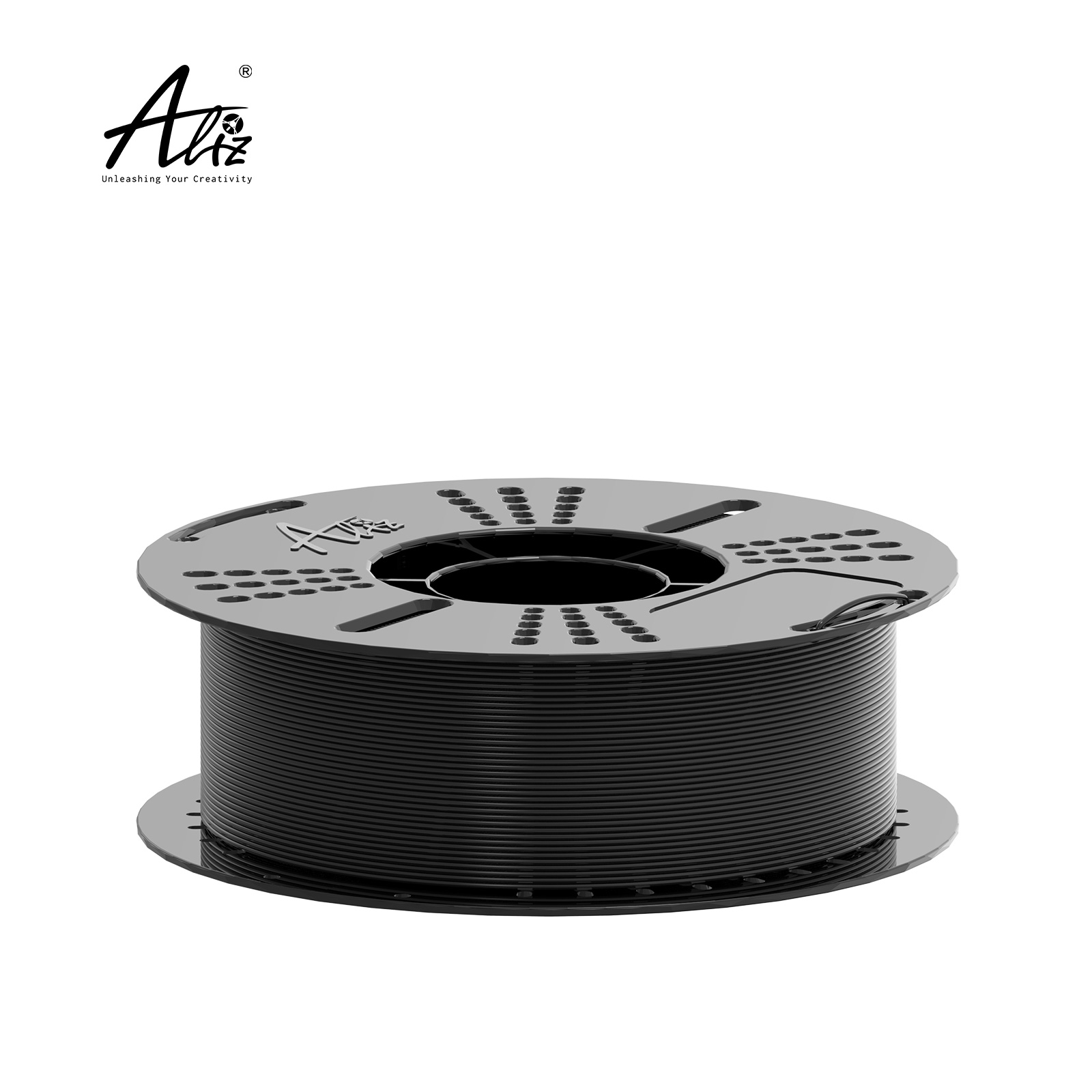

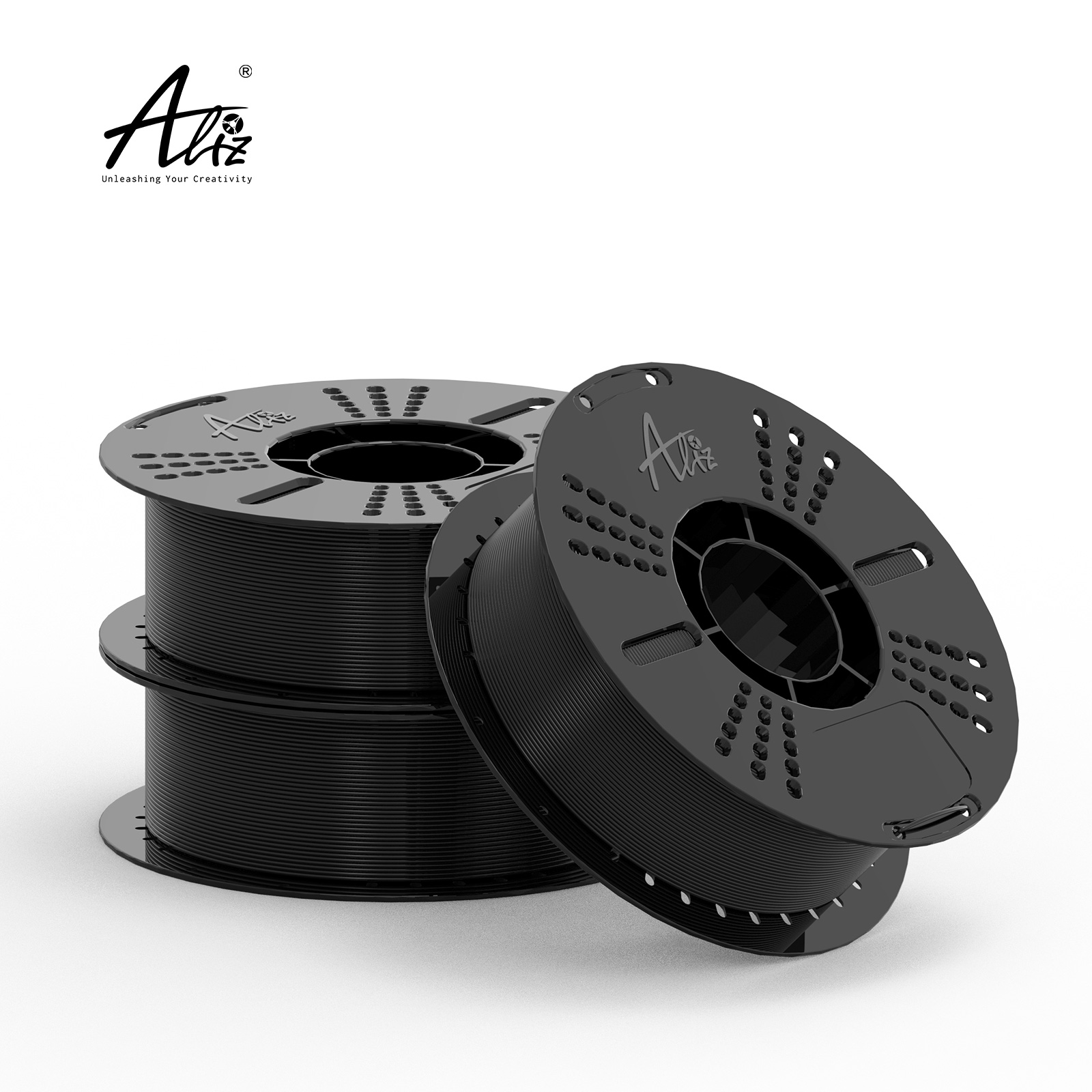

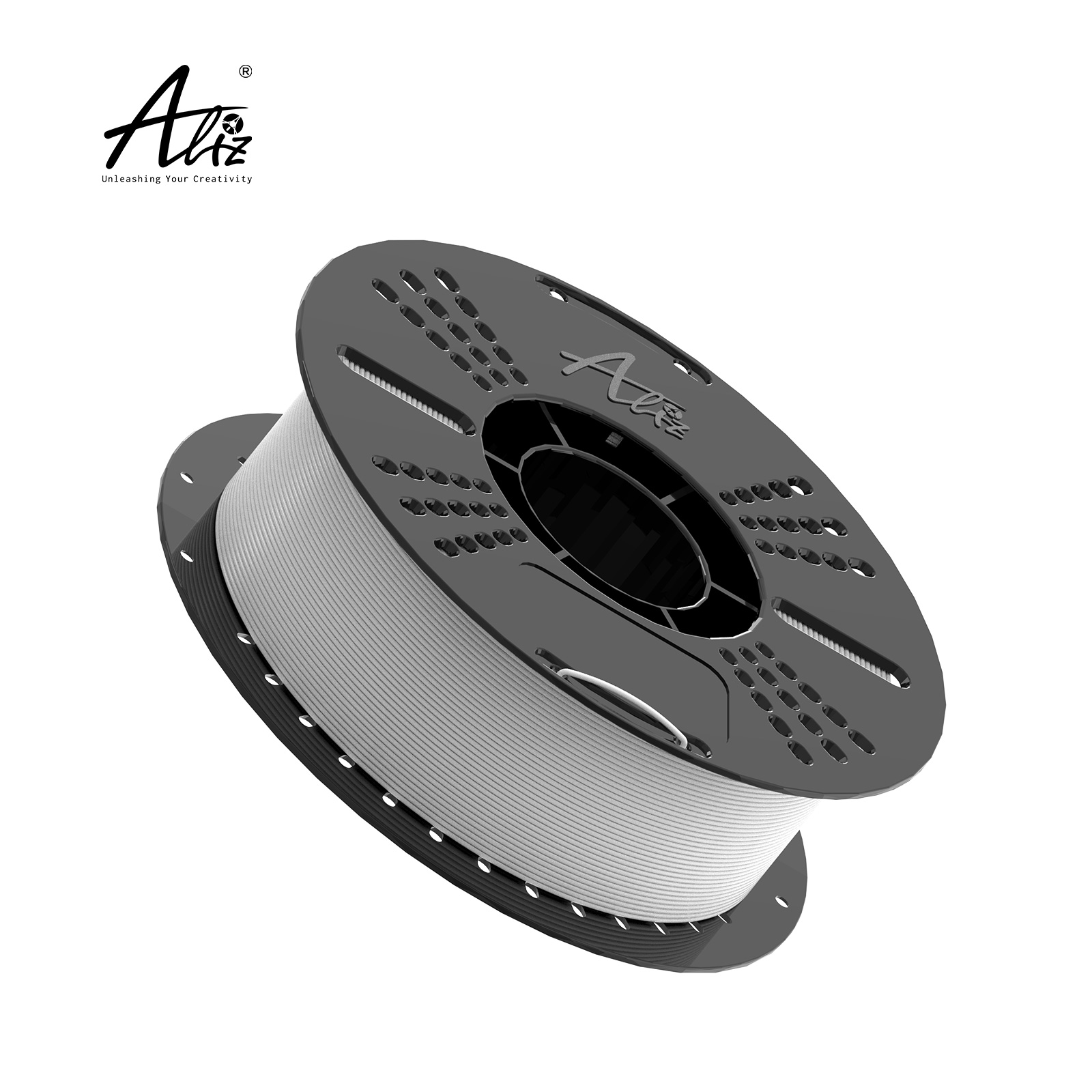

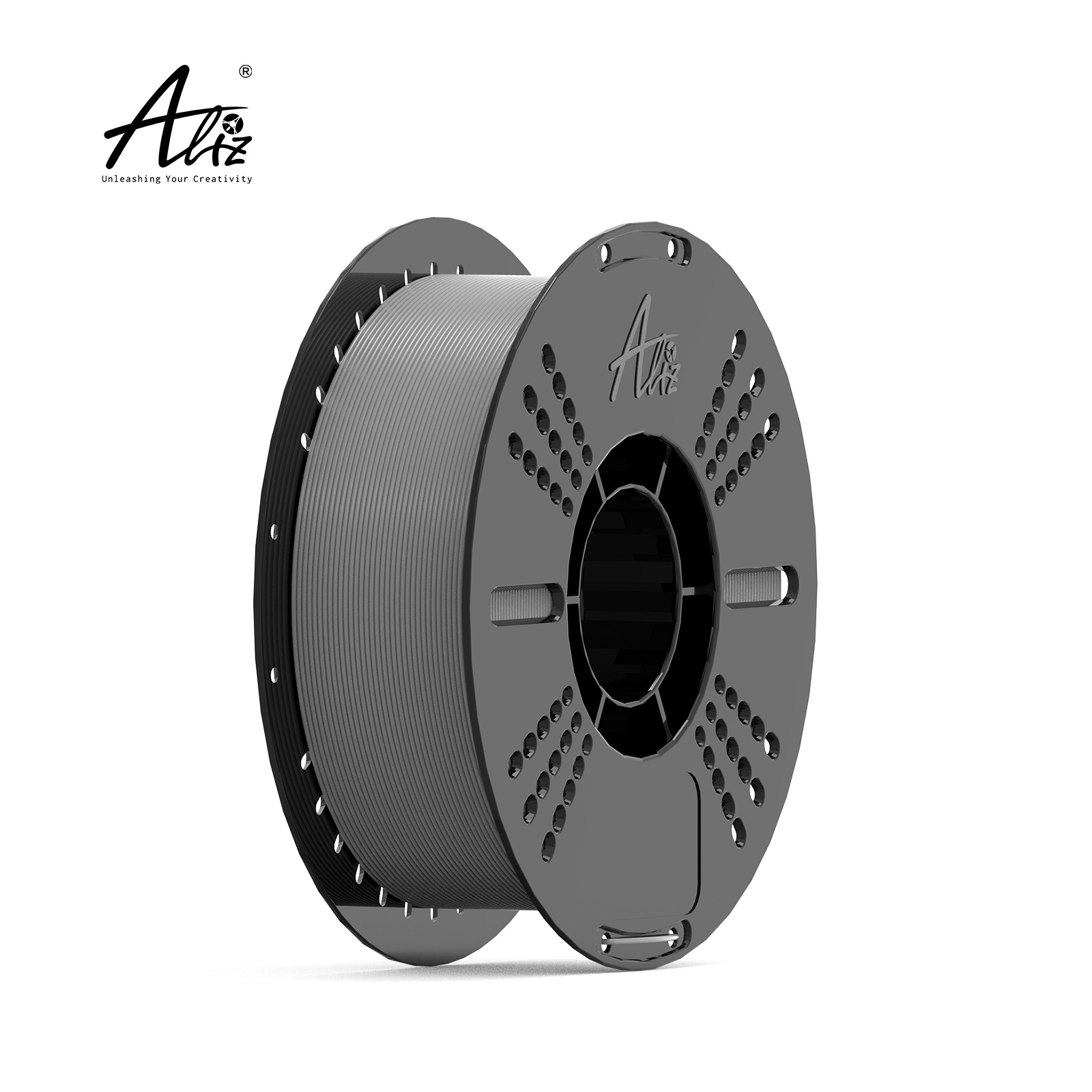

ABS 3D Printing Filament

Features:
1. High Strength
2. Good Corrosion Resistance
3. Excellent Heat Resistance
4. Easy Processability

Diameter: 1.75mm/2.85mm

Weight of each roll: 1kg/2kg

Color:	White Black Gray Black Nickel Cold White Purple Wathet Blue Beige Fuchsia Silver Sky Blue Saffron Yellow Grass Green Orange Navy Blue Red Yellow Green Blue
Availability:



Inquire Add to Basket

ABS 3D Printing Filament is a type of thermoplastic material, primarily composed of three chemical monomers: acrylonitrile, butadiene, and styrene. Its inherent strength and heat resistance create a dependable, tough material. When durability and heat resistance are required for 3D printed parts, ABS Filament is an excellent choice.

It is characterized by good mechanical strength, corrosion resistance, heat resistance, and ease of processing. It boasts excellent impact resistance, high-temperature tolerance, reduced brittleness, high toughness and durability, making it suitable for high-speed printing.

When the bed temperature reaches above 80°C, printing tasks can be easily completed even without enclosing the chamber. By sealing the chamber and maintaining a constant temperature, interlayer bonding can be further improved, resulting in more impact-resistant products that are very suitable for printing large items like sculptures, mannequins, as well as mobile phone holders and cup stands. Moreover, it can also be applied to the production of various plastic parts, such as toys, tools, electronic devices, etc.

Features

Excellent Overall Performance

Good overall performance with outstanding impact strength, wear resistance, as well as favorable molding and machining properties.
High Quality

Good hardness, high toughness, low density, easy coloring, corrosion resistance, high temperature resistance, good scratch resistance.
Good Molding Effect

High impact resistant and opacity, and product molding effect is very good, with a smooth and delicate surface.
Good Stability

Printed items are unlikely to get deformed with a fine molding effect, and the printed part still has good toughness and heat resistance.
Good Physical Properties

It is impermeable with water absorption less than 1% at room temperature.
Polish Allowed

Its surface can be polished with acetone, such as cosplay props that that require sanding and fine finishing.
Tips: Since ABS material is derived from petroleum, there will be a certain odor when printing.

Since some printers on the market do not support ABS material printing, please ensure you thoroughly understand whether your printer is compatible before making a purchase.

Advatages

ABS 3D Printing Filament possesses high tensile and flexural strength, allowing it to maintain its performance during prolonged use.

High Strength
ABS 3D Printing Filament exhibits good resistance to a wide range of chemicals, including acids, bases, and salts.

Good Corrosion Resistance
ABS 3D Printing Filament can be easily processed through cutting, drilling, and sanding, facilitating post-processing and assembly.

Easy Processability
ABS 3D Printing Filament has superior heat resistance, capable of retaining its properties at relatively high temperatures.

Excellent Heat Resistance

Applications

ABS Printing Filament is a widely used thermoplastic engineering plastics in industrial machinery plastic parts, model machinery, electronic appliances, instrumentation and other industrial fields.

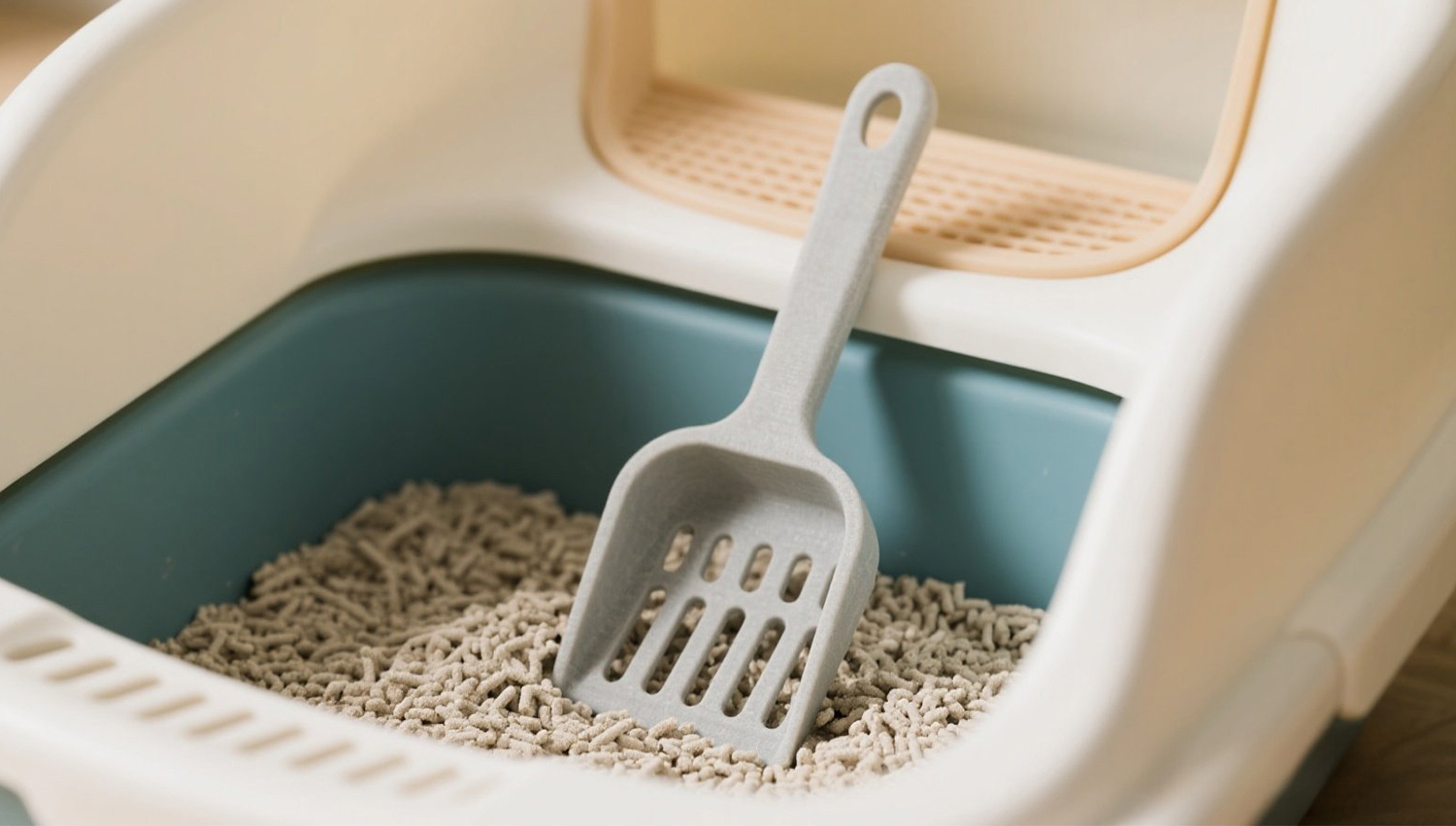

Pet Toys

Thermoplastic Engineering Plastics

Model Machinery

Related Products

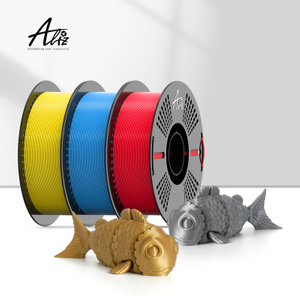

PETG 3D Printer Filament

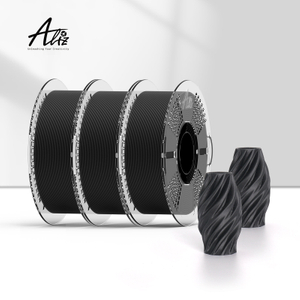

PA-CF 3D Printer Filament General Vision

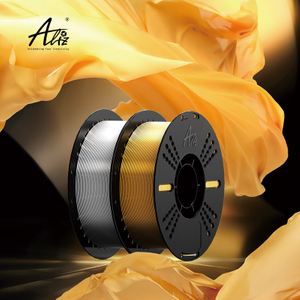

PLA Silk 3D Printer Filament

Property	Testing Method	Injection Molding Typical Value	3D Printing X-Y Axis Typical Value	Unit
Tensile Strength	ISO 37, GB/T 528	38 ± 3.2	25 ± 3.2	MPa
Elongation at Break	ISO 37, GB/T 528	385 ± 14	350 ± 14	%
Shore Hardness	ISO 7619-1, GB/T 531.1	95A	95A	/

Property	Testing Method	Testing Condition	Typical Value	Unit
Density	ISO1183, GB/T1033	Immersion	1.22-1.23	g/cm³
Melt Flow index(MFR)	ISO 1133	210° C, 1.2 kg	1.2-1.8	g/10 min

Property	Testing Method	Testing Condition	Injection Molding Typical Value	3D Printing Typical Value	Unit
Moisture Absorption	ISO 62	50%RH*23℃	0.12	0.13	%

Property	Testing Result
Weak Acid Resistance	Not Resistant
Strong Acid Resistance	Not Resistant
Weak Base Resistance	Not Resistant
Strong Base Resistance	Not Resistant

Printing Temperature	220 — 240(℃)
Bed Temperature	30 — 40(℃)
Wall Layers	2 Layers
Top and Bottom Layers	4 Layers
Infill	100%
Ambient Temperature	25℃
Cooling Fan	0-10%
Printing Speed	30 — 50 (mm/s)
Nozzle Diameter	0.4 mm
