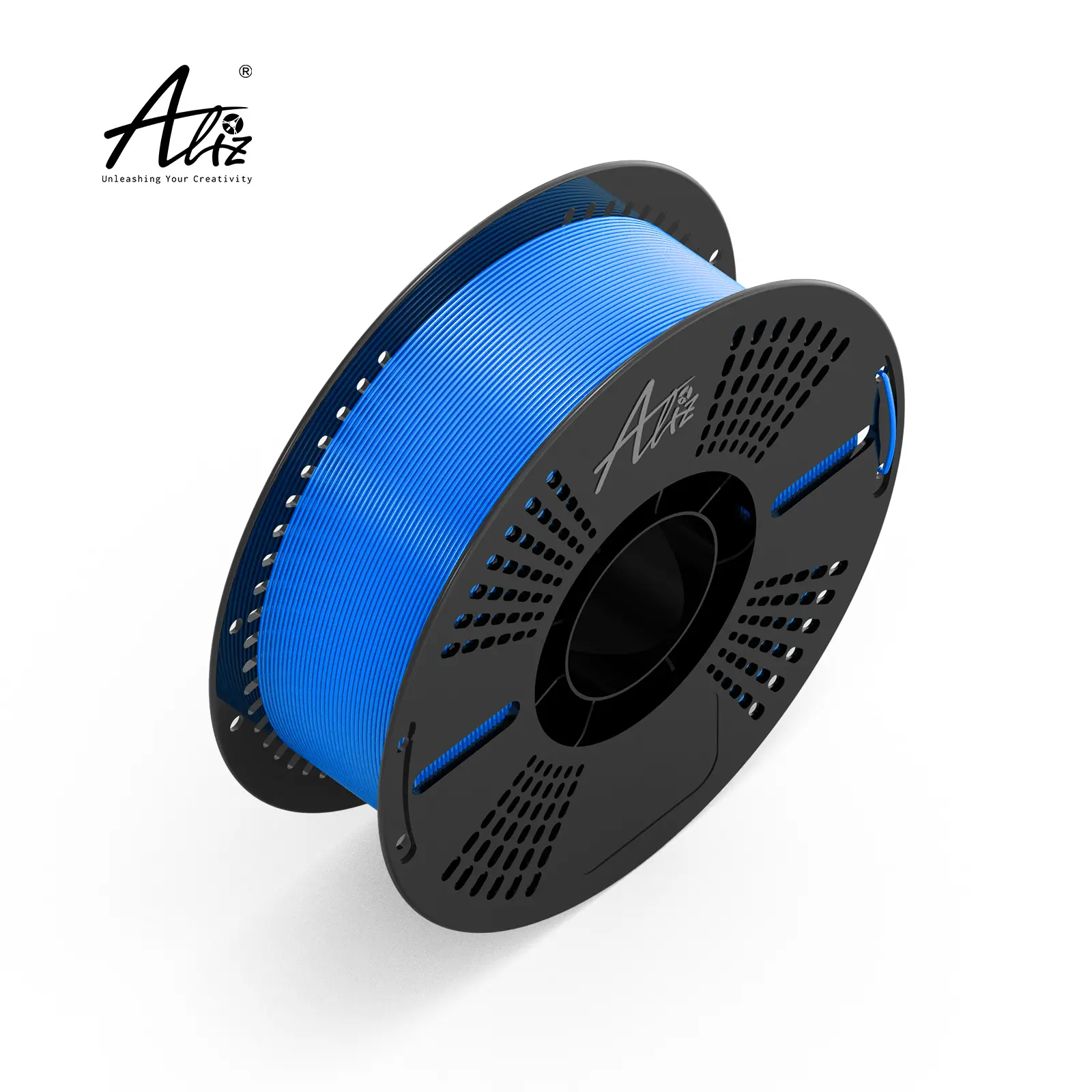

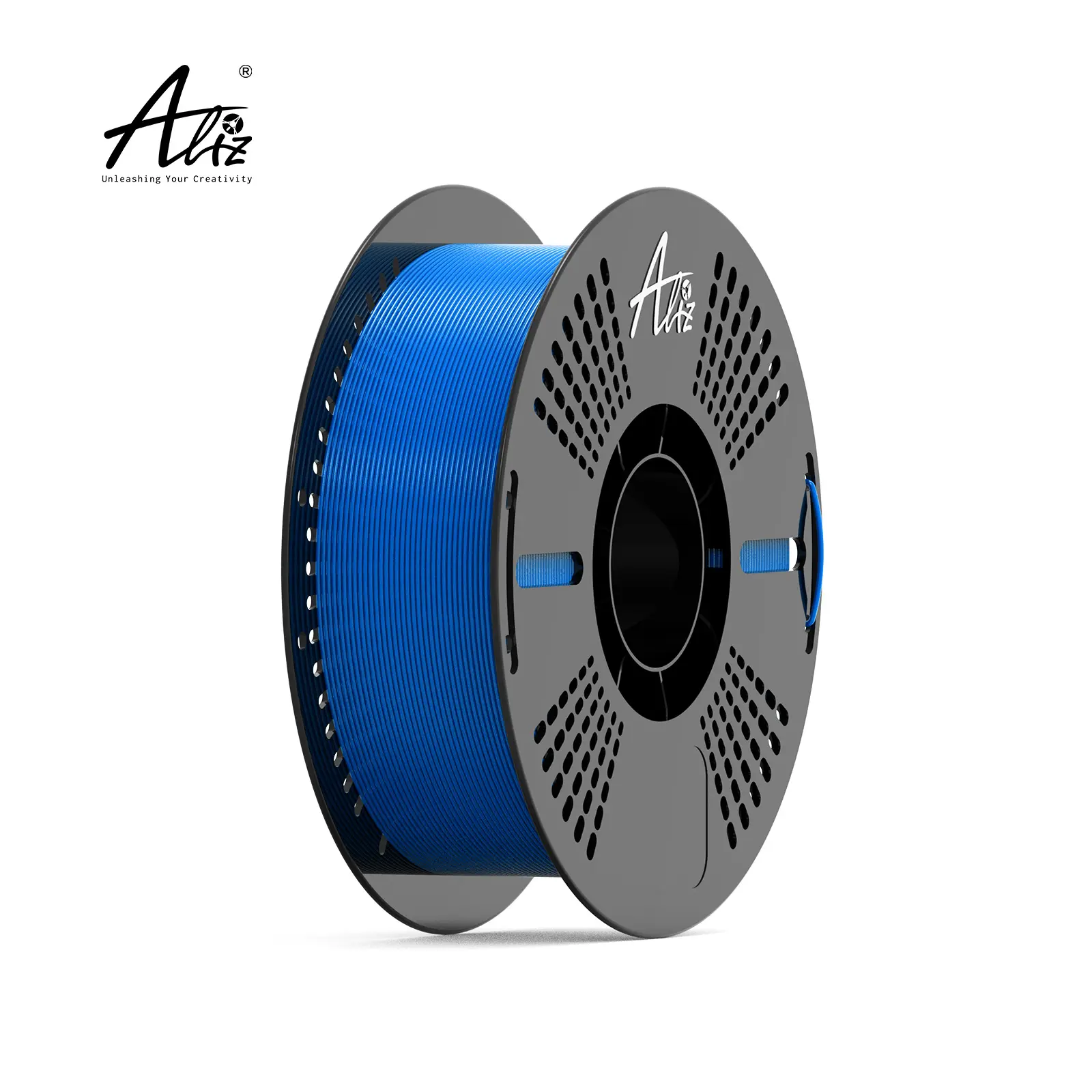

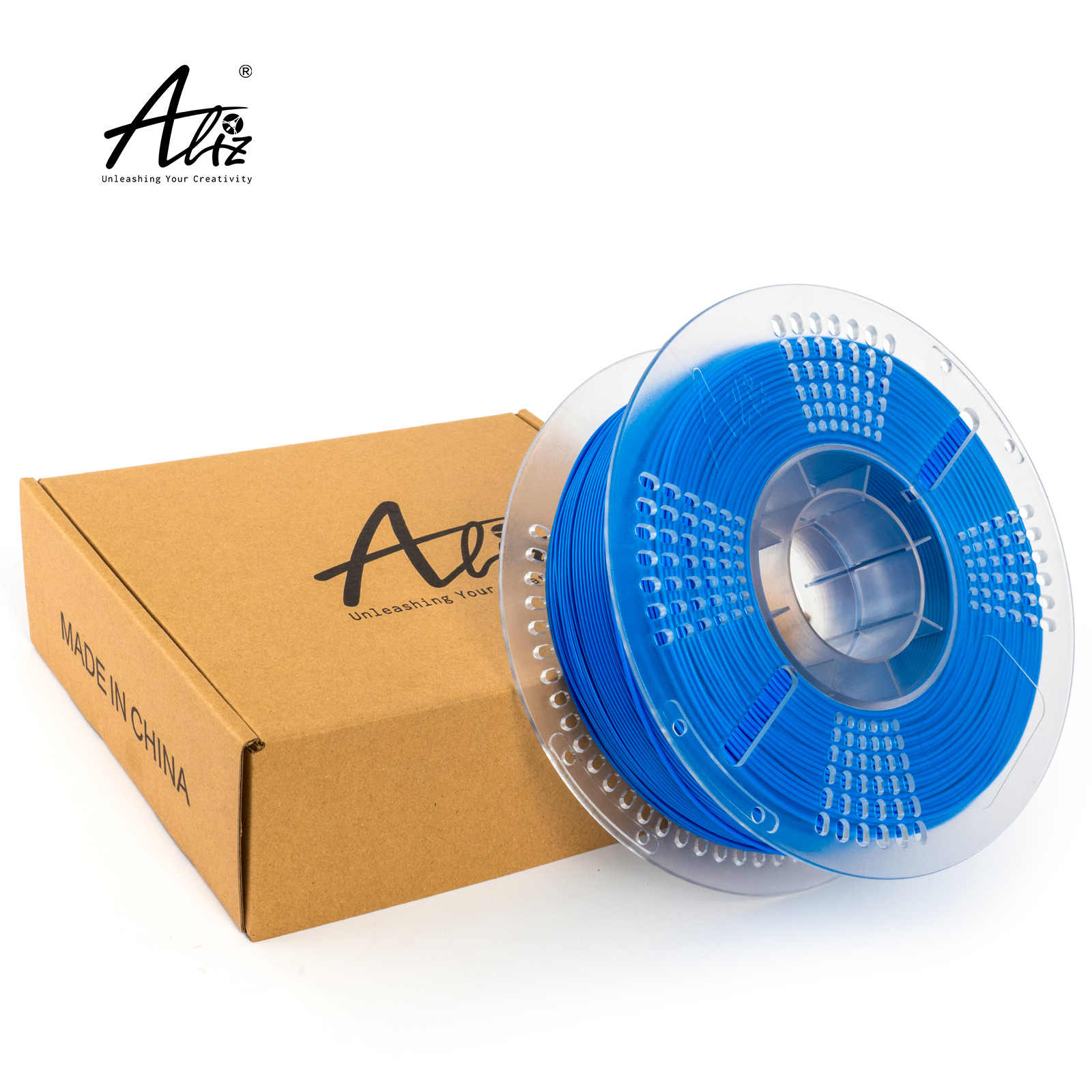

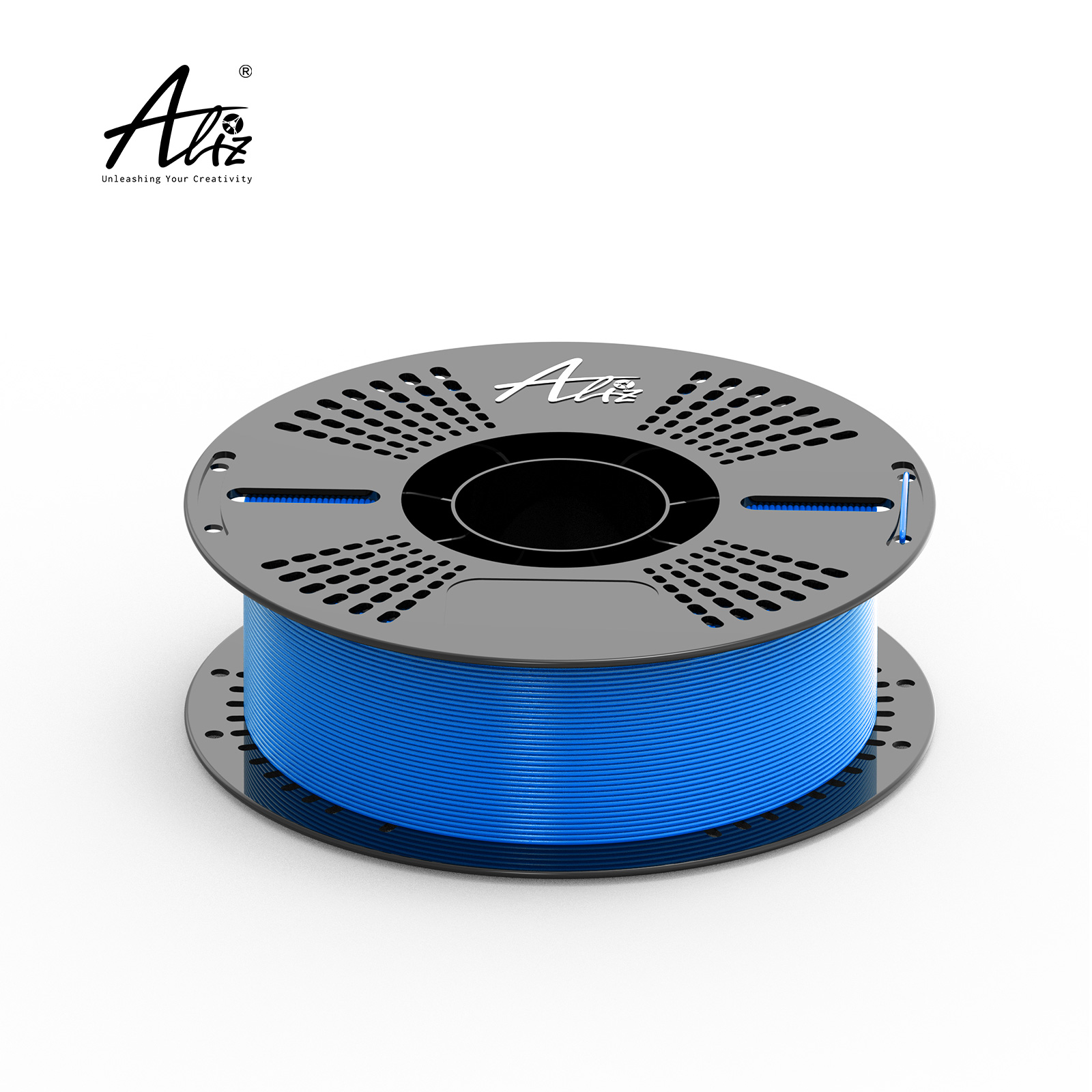

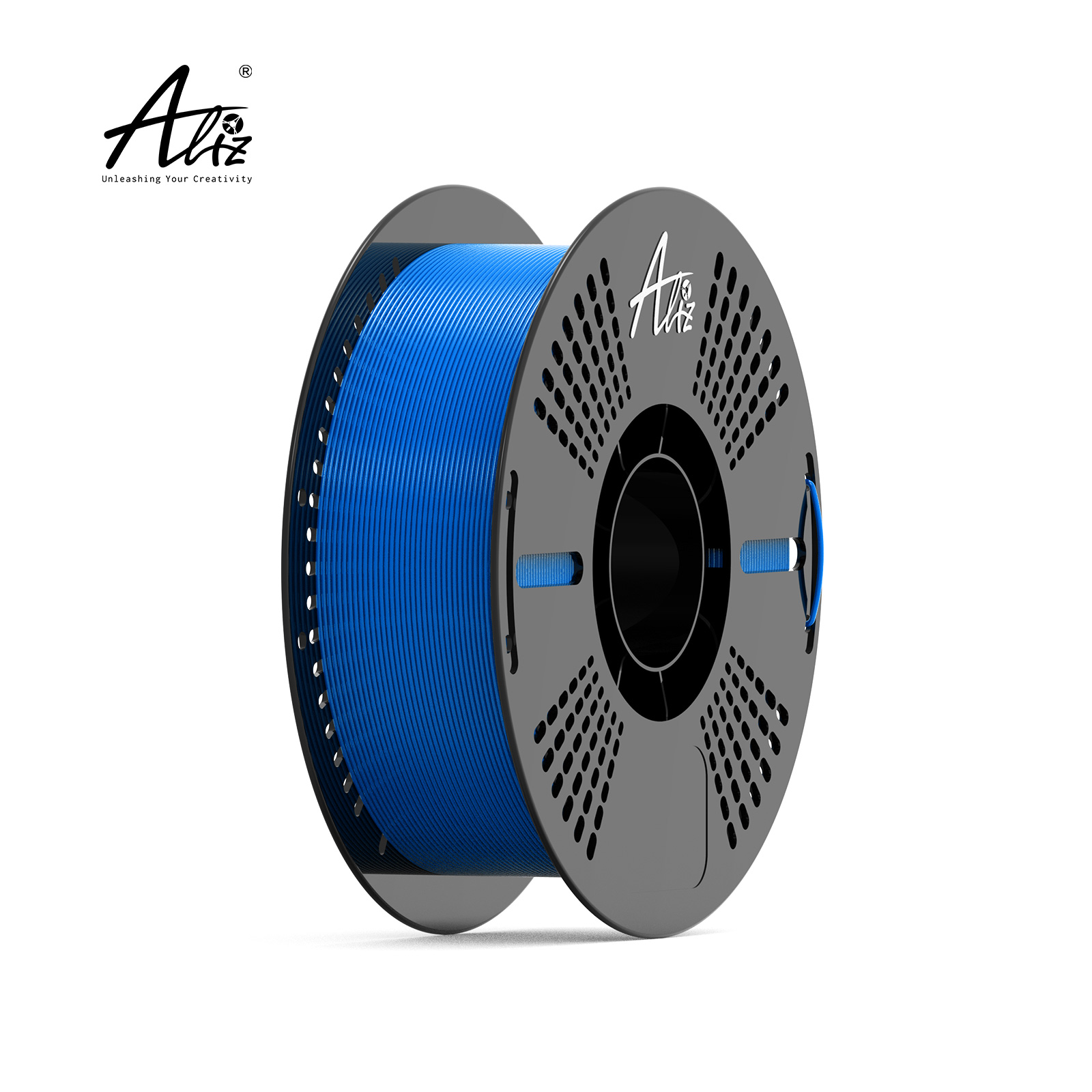

PETG 3D Printer Filament

PETG is a glycol modified version of polyethylene terephthalate (PET), commonly used in water bottle manufacturing. Filaments that are made from PETG are widely applied in 3D Printing due to their special properties and easy-of-processing. It is a kind of ideal Printing Material with practical application value.

Diameter: 1.75mm/2.85mm
Weight of each roll:1kg/2.5kg

Color:	Bright Red Copper Cinnabar Red White Black Light Gray Metallic Silver Champagne Gold Glitter Silver Brass Lemon Green Yellow Lake Blue Orange Cherry Blossom Pink Olive Green Skin color Mint Green Violet Magenta Black Nickel Army Green Green Beige Cyan Klein Blue Red Wine Coffee Color Dark Gray Amber Gold Red Copper Marble PETG
Availability:



Inquire Add to Basket

PETG Printing Filaments are commonly used in 3D Printing. As a new type of 3D Printing Material, PETG shares advantages of PLA and ABS, whose printing products have good glossiness, high strength, low warping, smooth surfaces. What’s more, the products are not easy to break and almost no odor during printing.

It is important to note that each material has its unique Features and Application scopes, so users are advised to consider comprehensively based on specific requirements and printer models when choose to use it. Meanwhile, an appropriate settings and adjustment still need to be made according to Printer types and individual needs for the best printing effect when you use PETG Filaments.

Features:

High Transparency: PETG usually has a good transparency and is applicable to printing transparent or semi-transparent parts.

Good Toughness: This filament is comparatively tough and impact resistant to some extent, so its printing objects are more durable.

Easy to print: Lower printing difficulties make it able to be smoothly used in most common printers.

____________________________________________

Color

注: 建议上传图片大小690px*460px

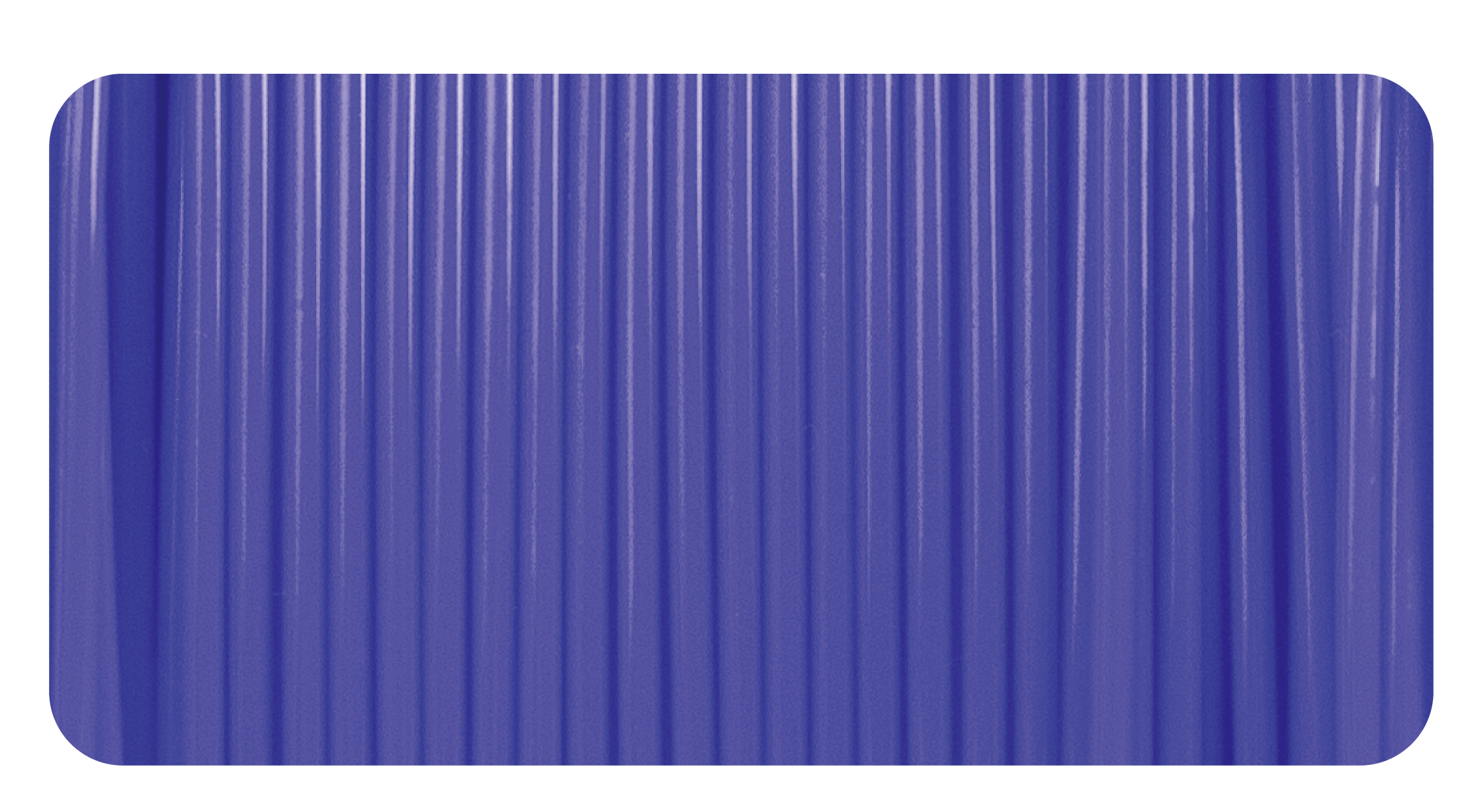

Violet

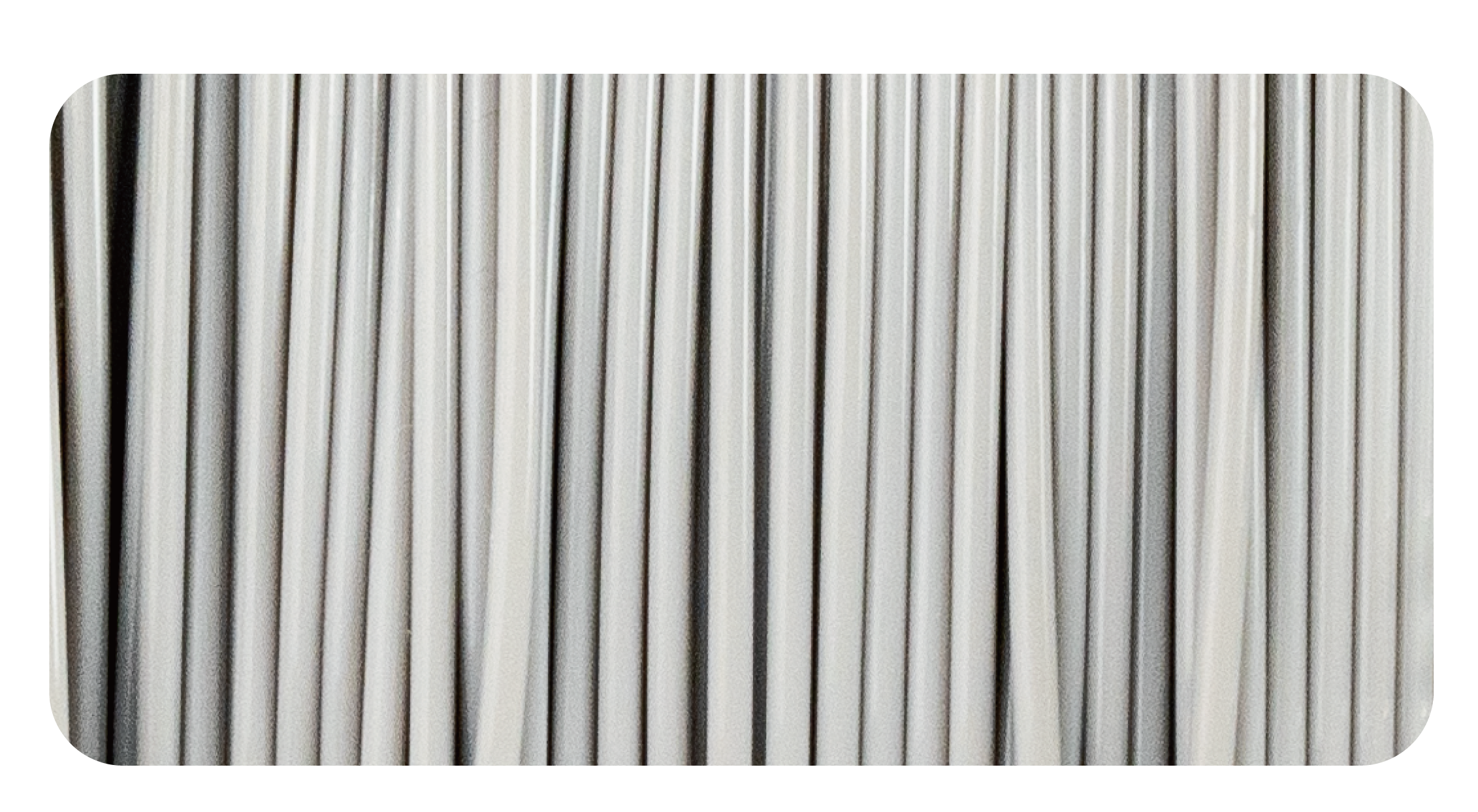

Light Gray

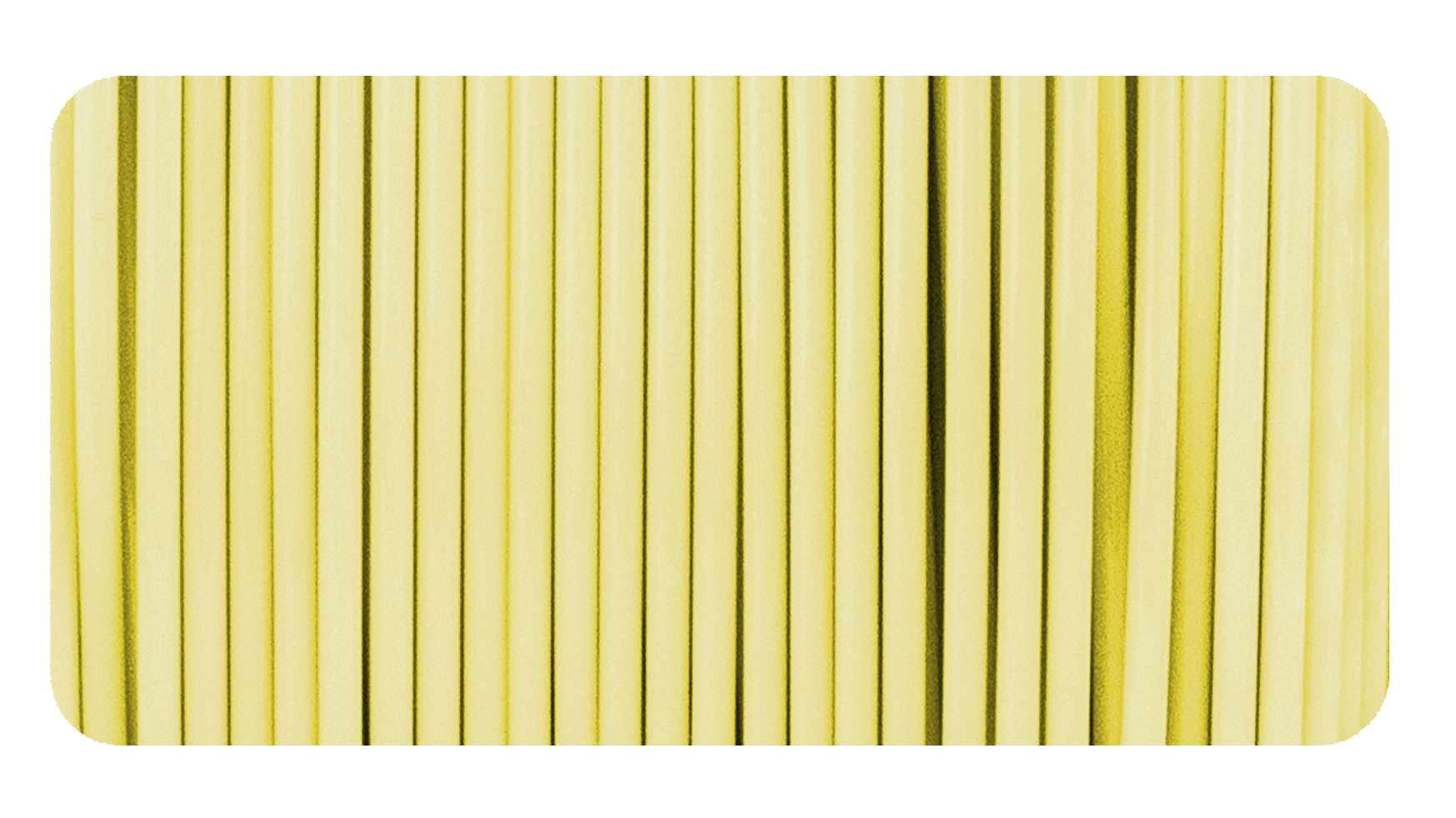

Beige

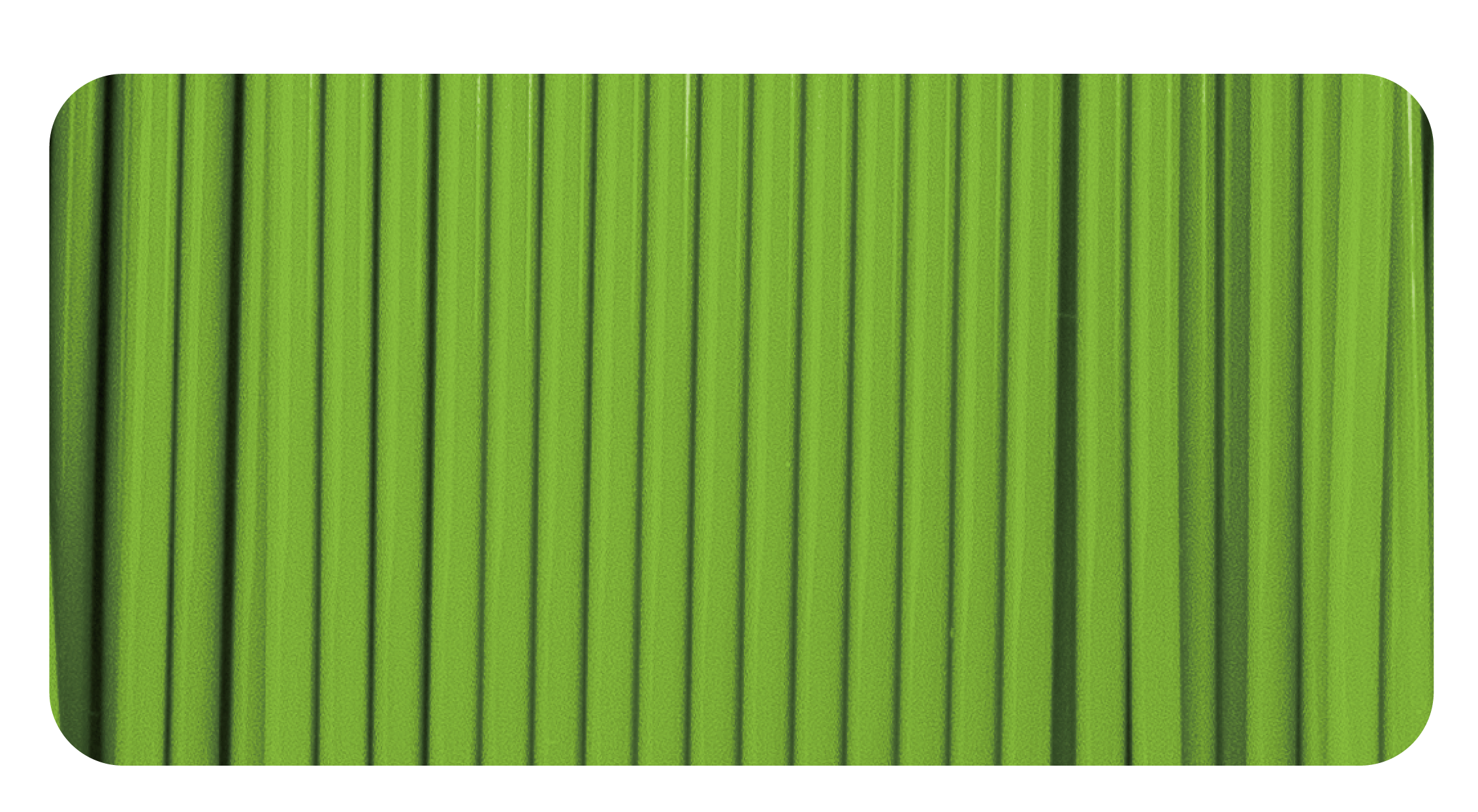

Lemon Green

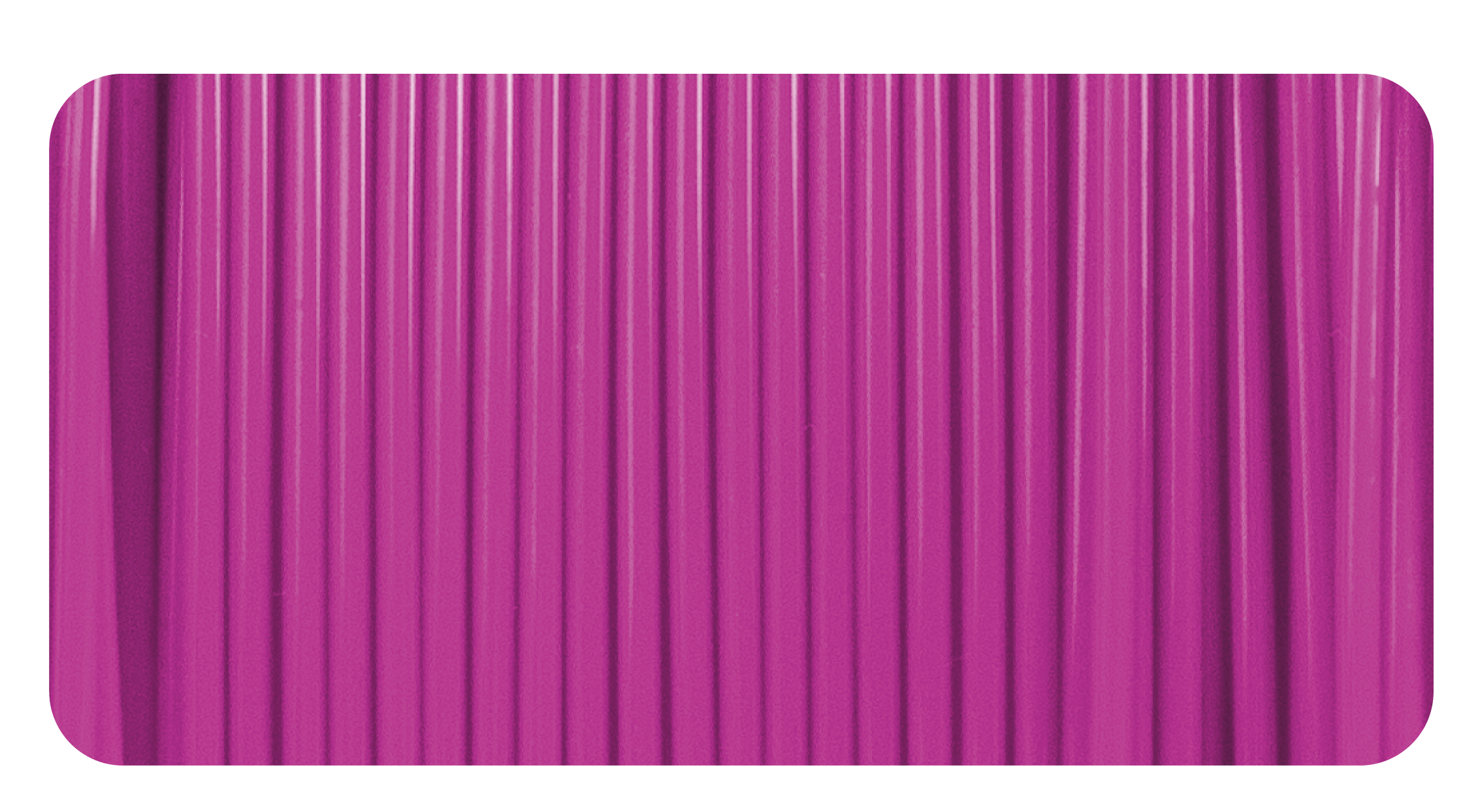

Magenta
Cyan
Cherry Blossom Pink

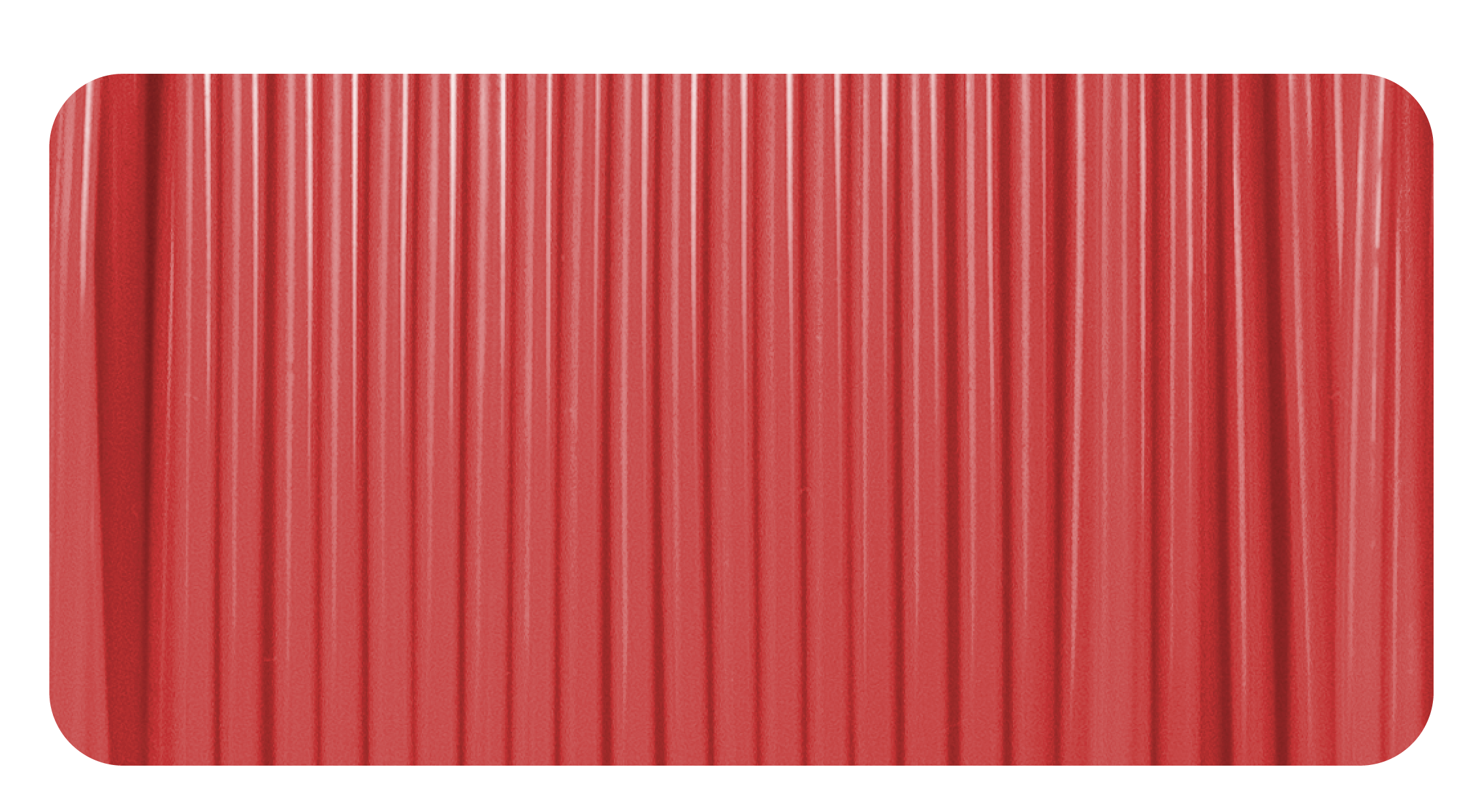

Cinnabar Red
Yellow

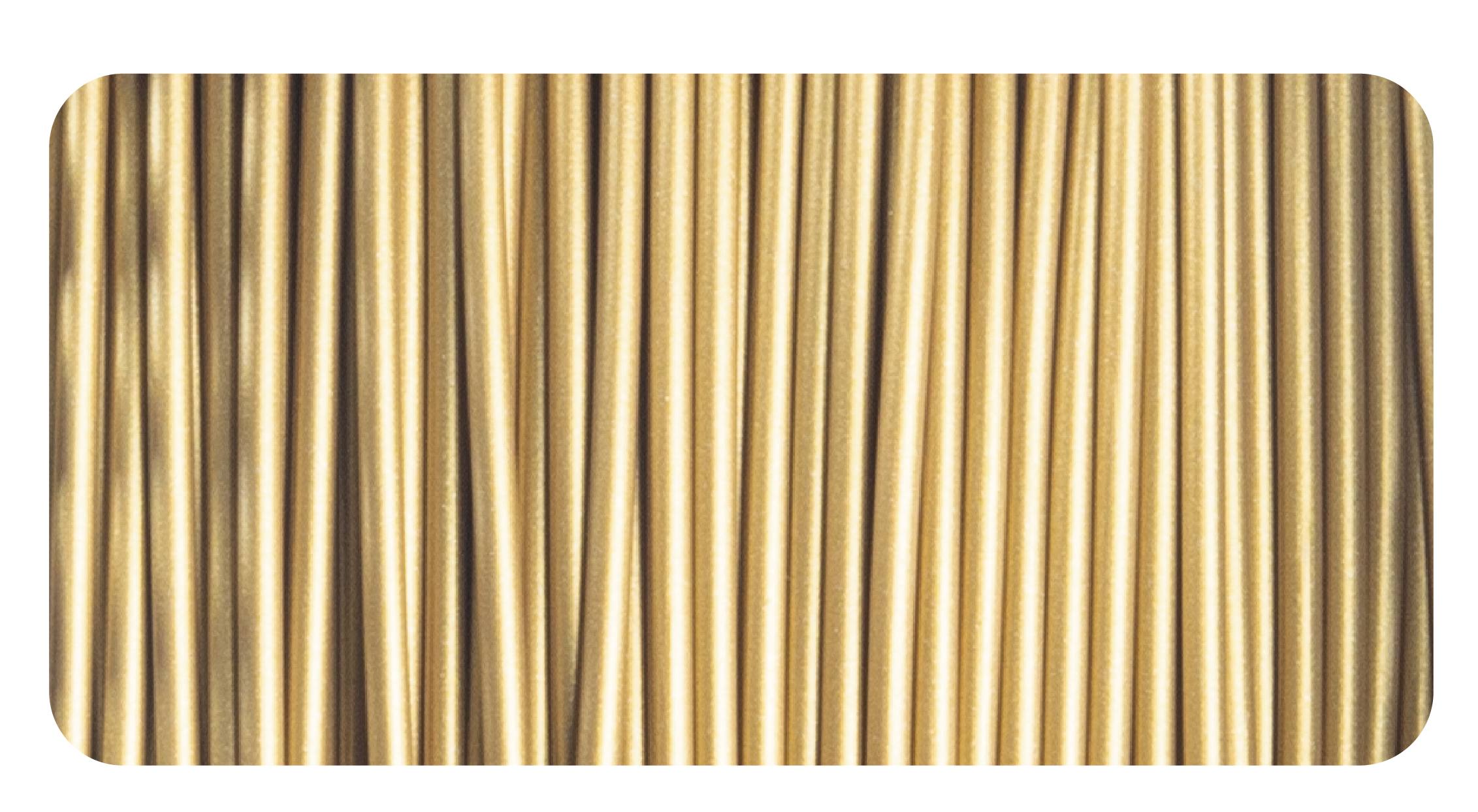

Brass

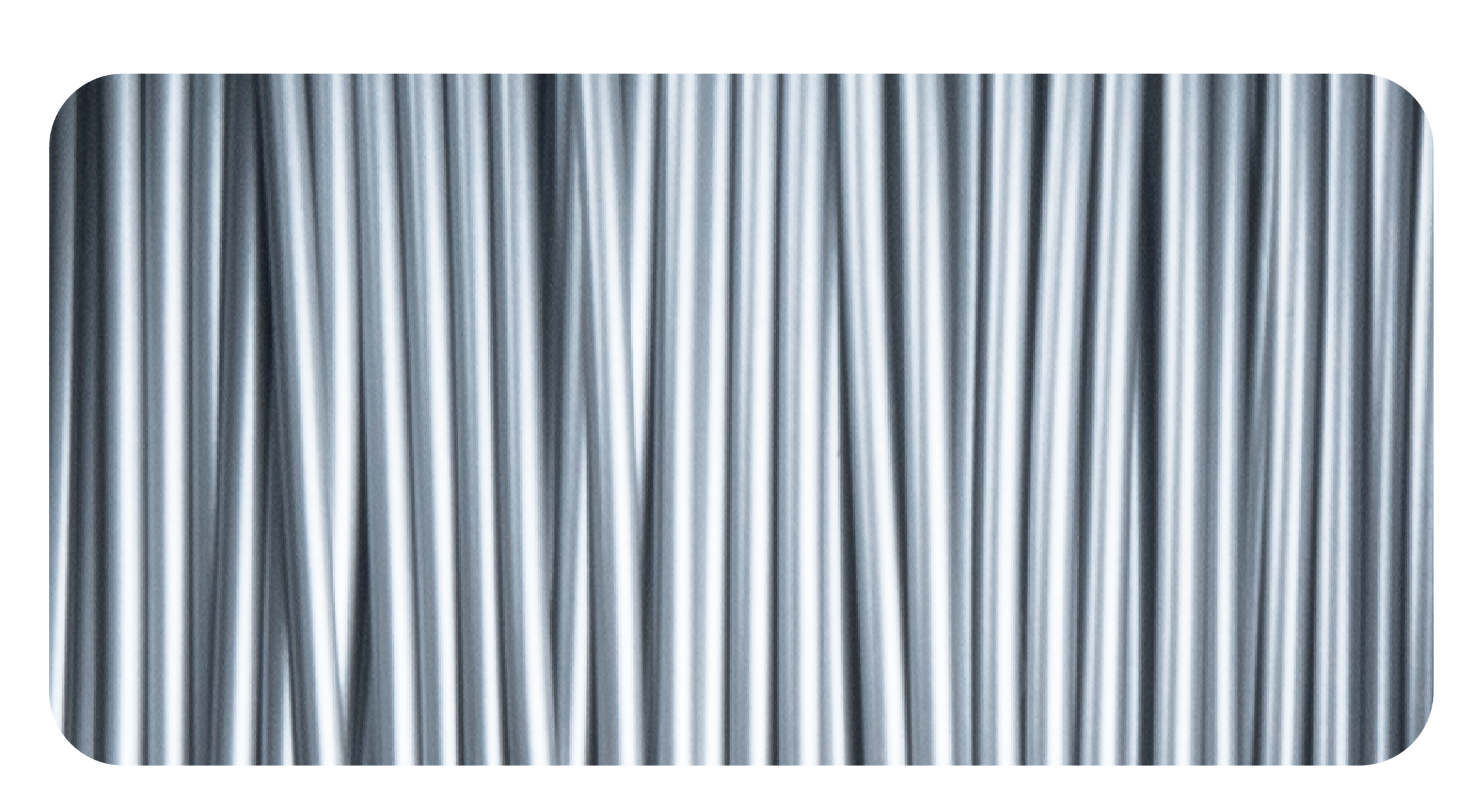

Metallic Silver
Champagne Gold
Dark Green
Klein Blue

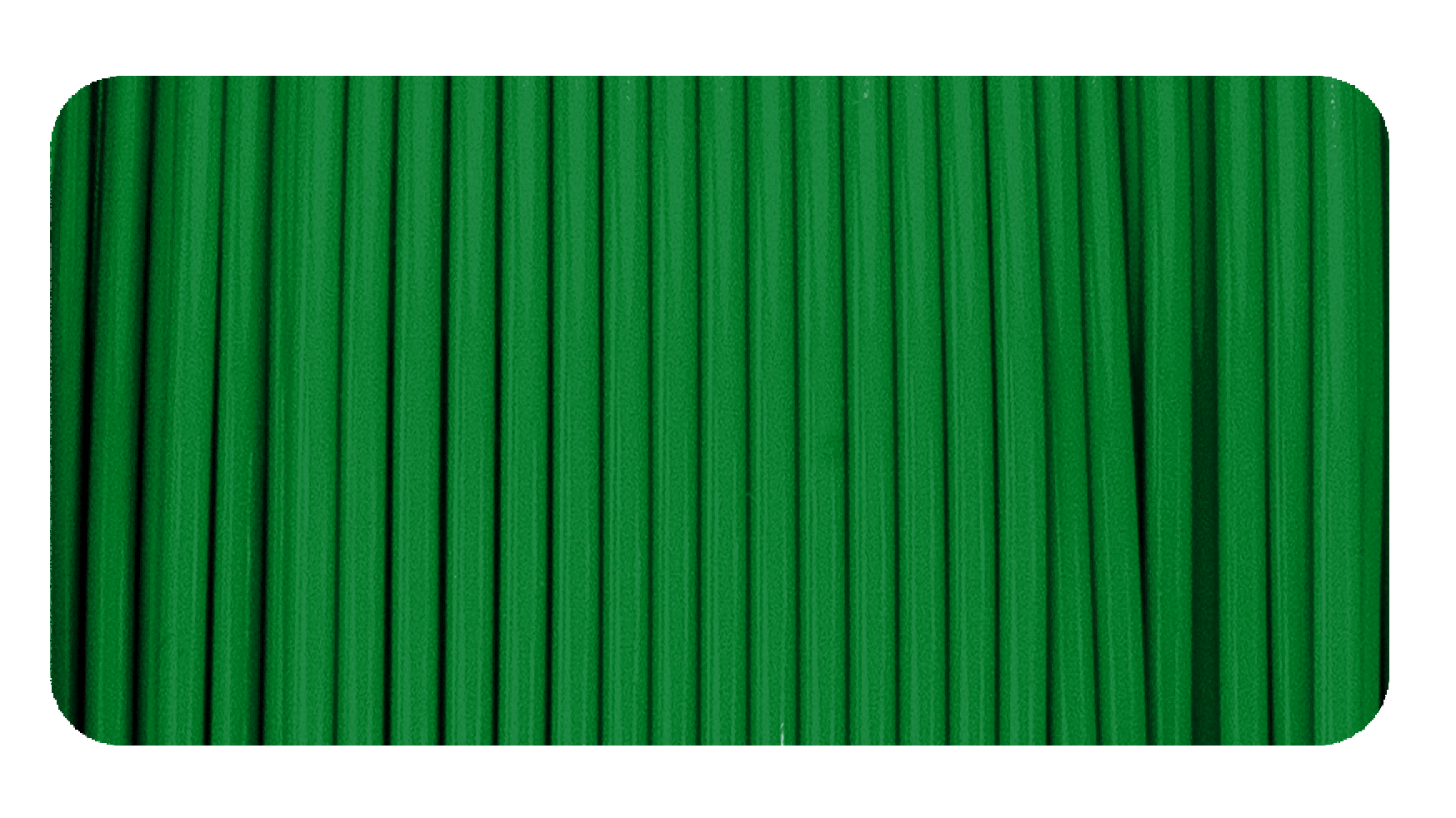

Green

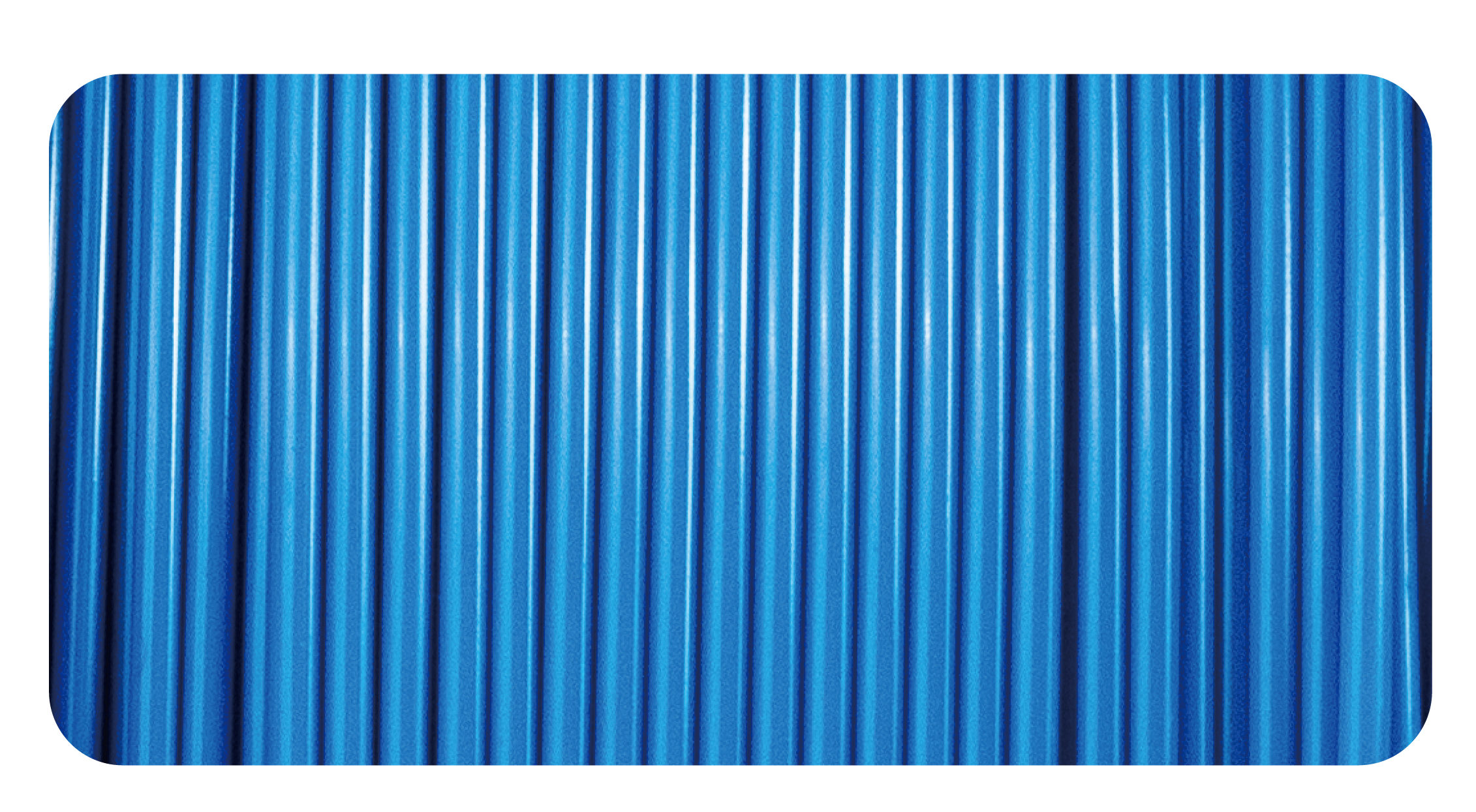

Lake Blue
Skin Color
Olive Green

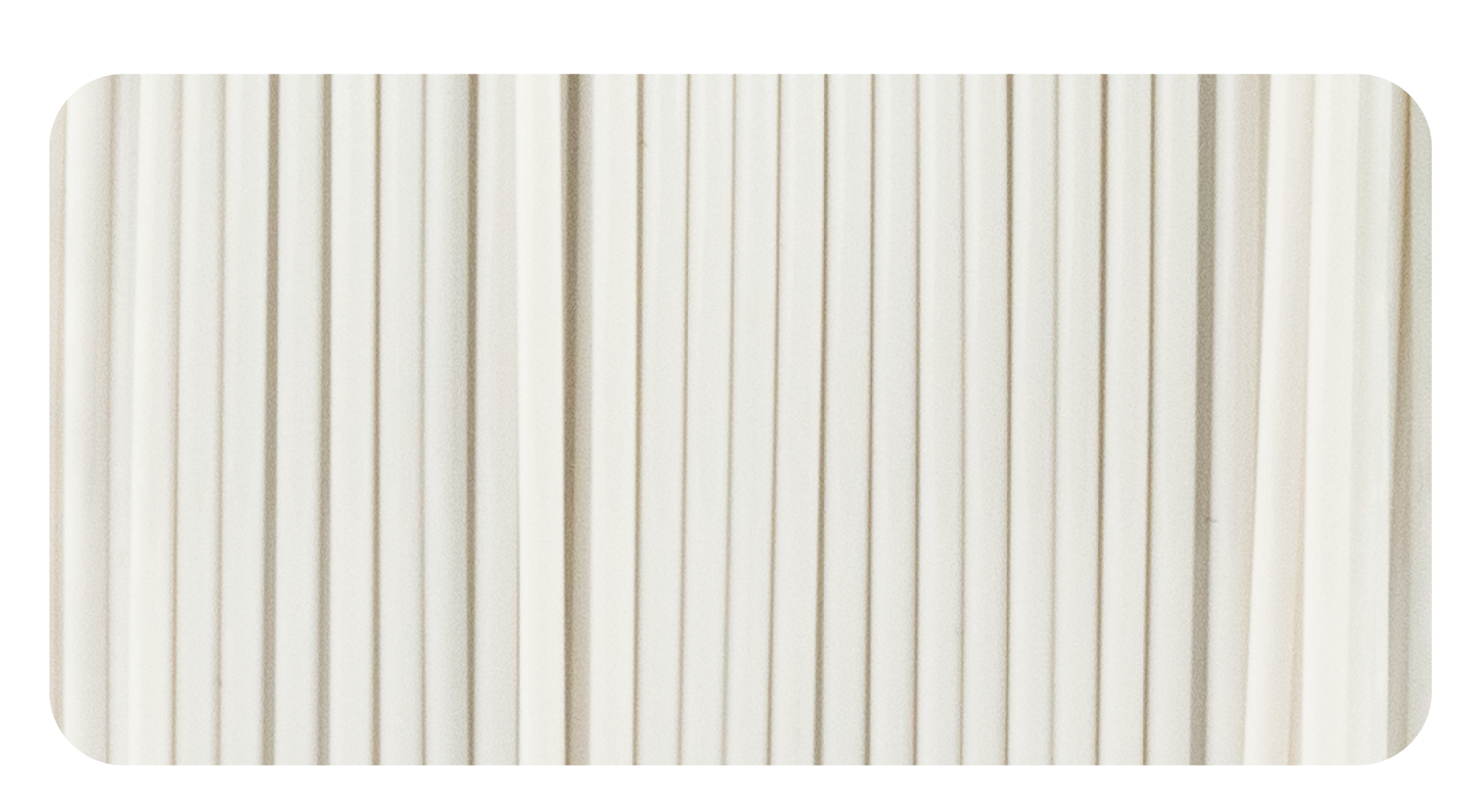

White

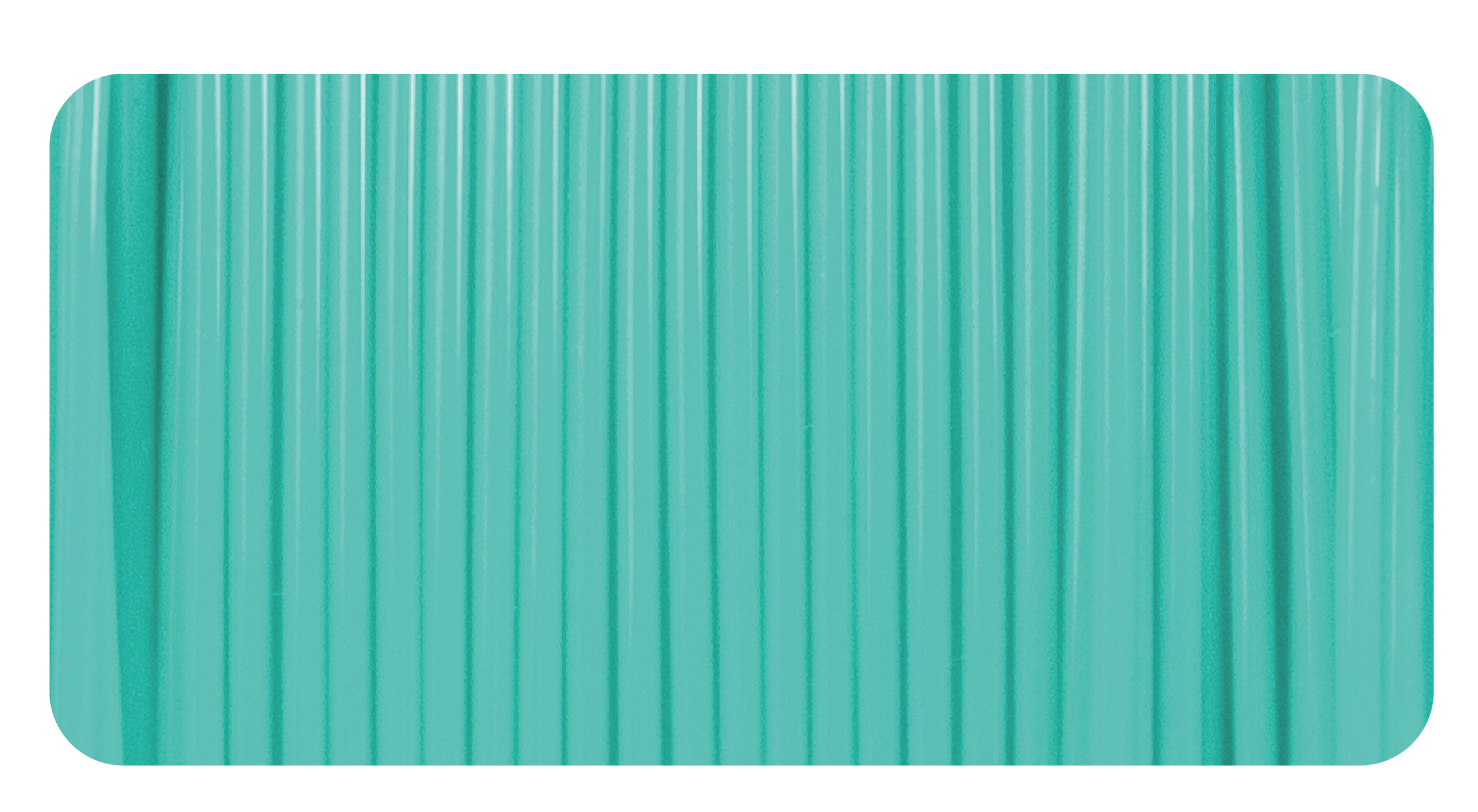

Mint Green

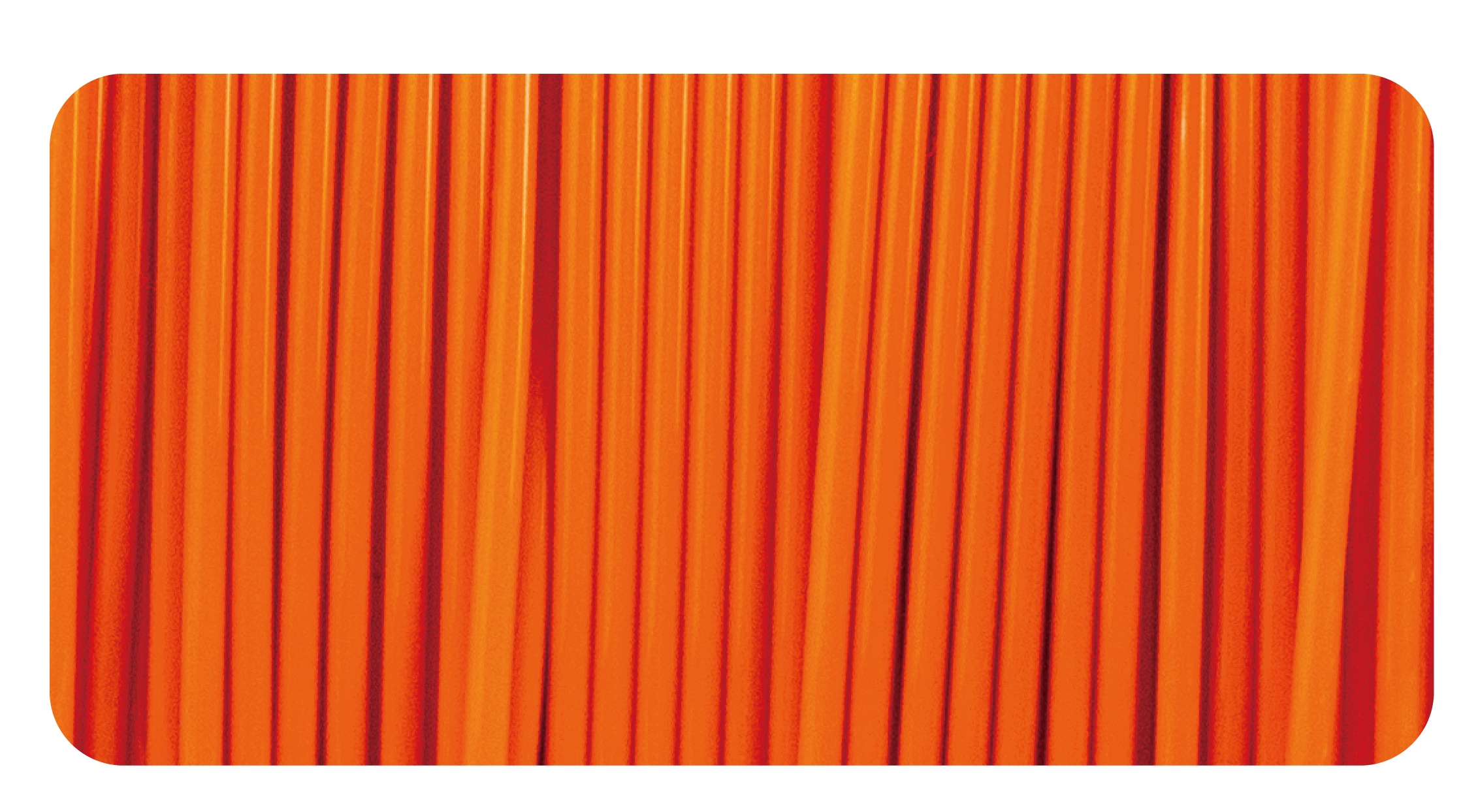

Orange

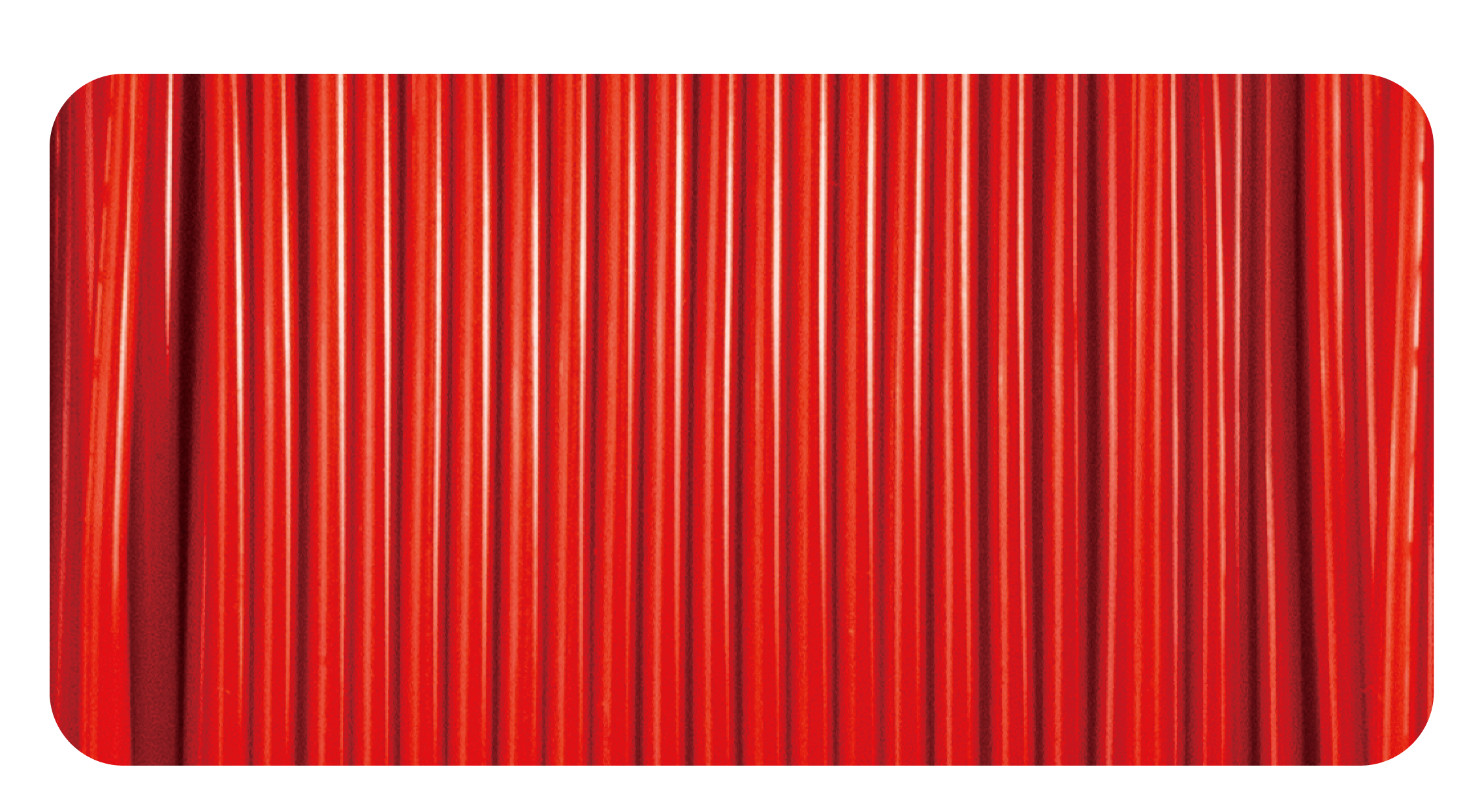

Bright Red
Bronze

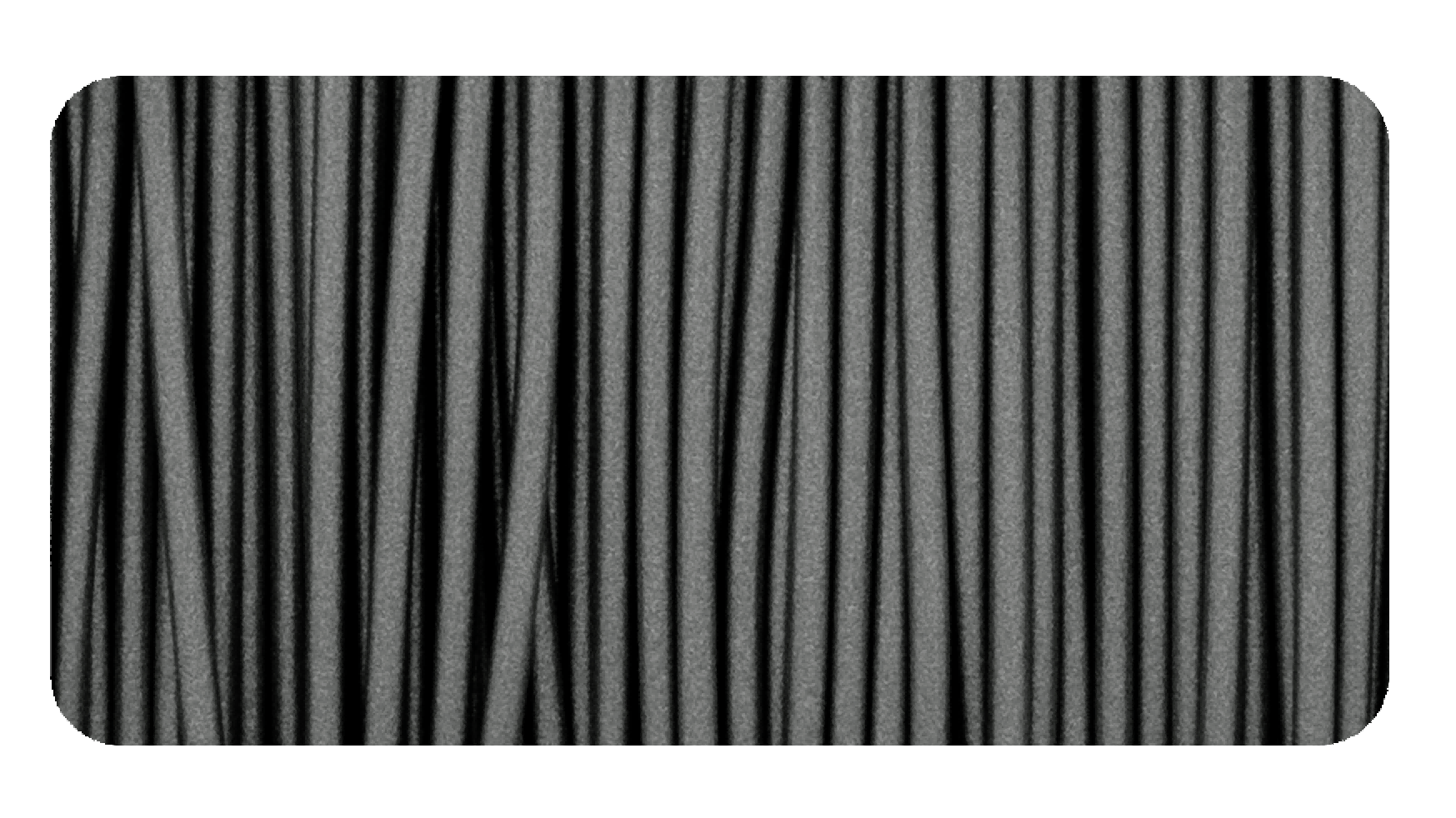

Black Nickel

Advantages

1 -

High Strength and Toughness:

PETG has a higher strength and toughness than PLA, so its printing objects are more durable.
Better Heat Resistance:

PETG can endure a higher temperature, so it has advantages in applications where there needs high-temperature resistance.
Transparency:

PETG can produce transparent or semi-transparent products which are suitable for projects that need transparent parts.
Chemical Resistance:

PETG has a good tolerance to some chemicals, making it suitable for some special environments or applications that require exposure to chemical substances.
Low Temperature Printing:

Compared with other materials, PETG can be printed at lower temperatures where heat damages to printers or printer parts can be reduced.
Low Shrinkage Rate:

PETG has a lower shrinkage rate, helping maintain dimensional accuracy of printing objects.
Food Grade Safety:

Some PETG materials can be used in food contact applications, such as printing food containers or packaging.

Colors can be Customized for your requirement

Bright Red
Brass
Cinnabar Red
White

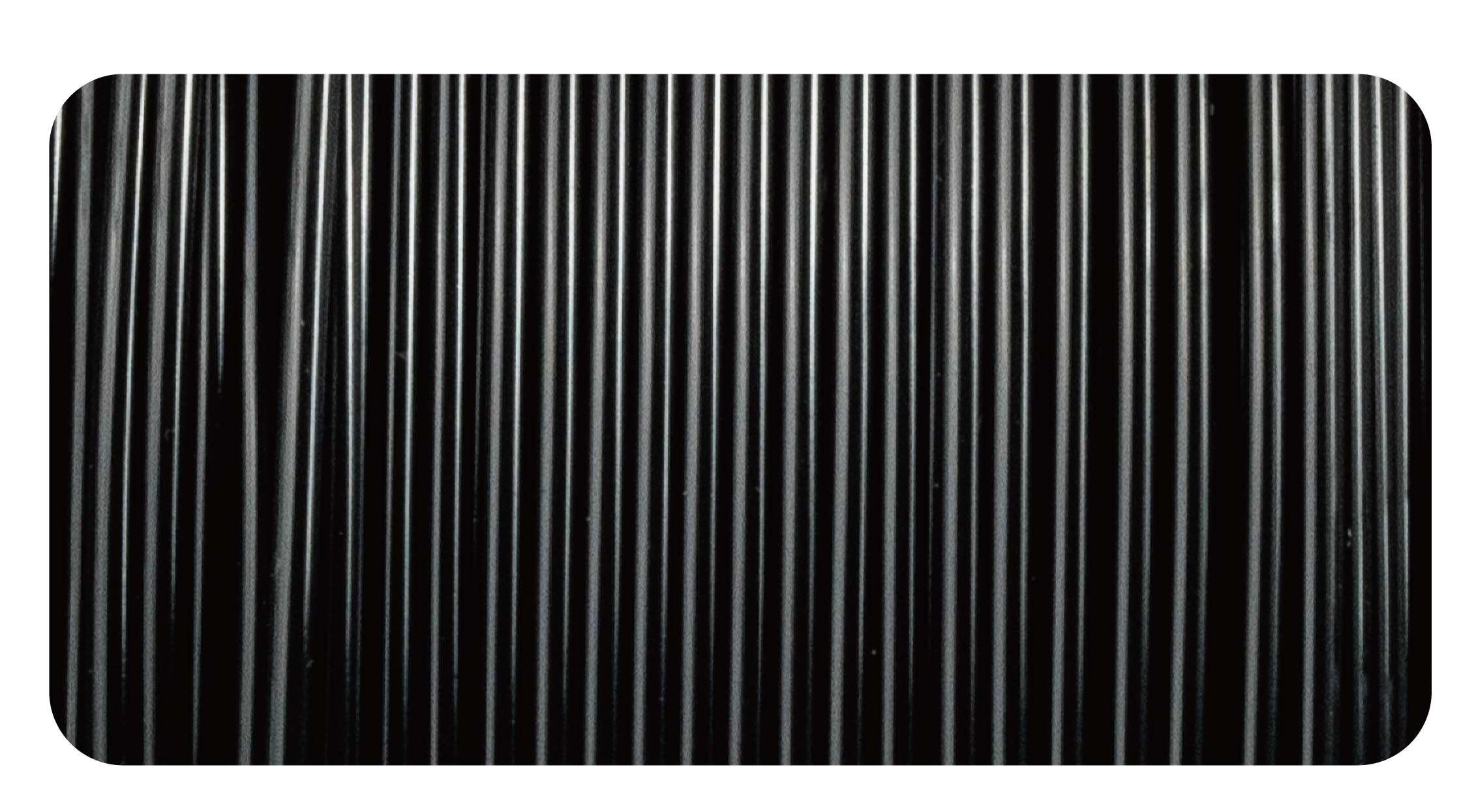

Black
Light Gray

Bright Red
Brass
Cinnabar Red
White
Black
Light Gray

Metallic Silver
Champagne Gold

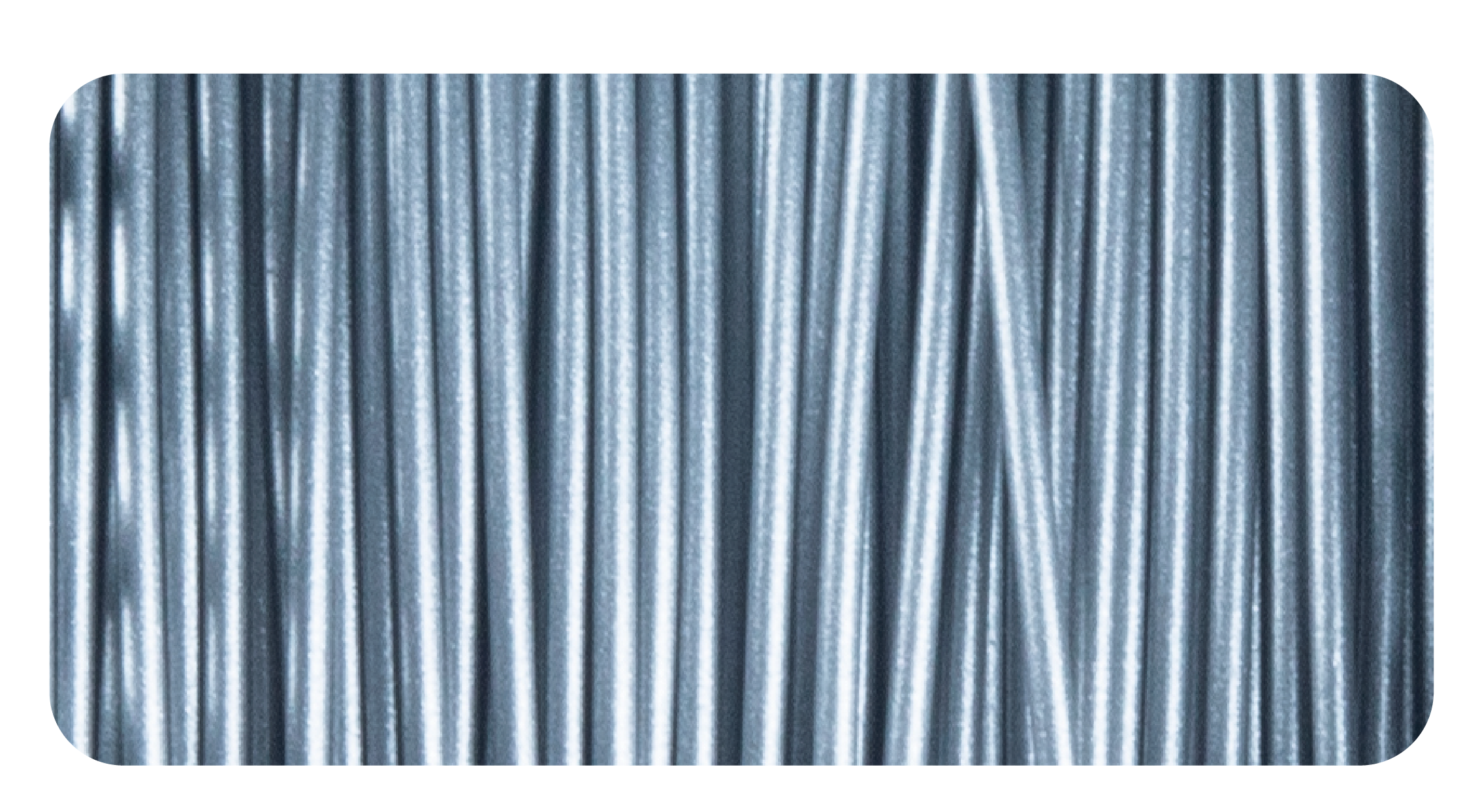

Glitter Silver
Bronze
Lemon Green
Yellow

Metallic Silver
Champagne Gold
Glitter Silver
Bronze
Lemon Green
Yellow

Lake Blue
Orange
Cherry Blossom Pink

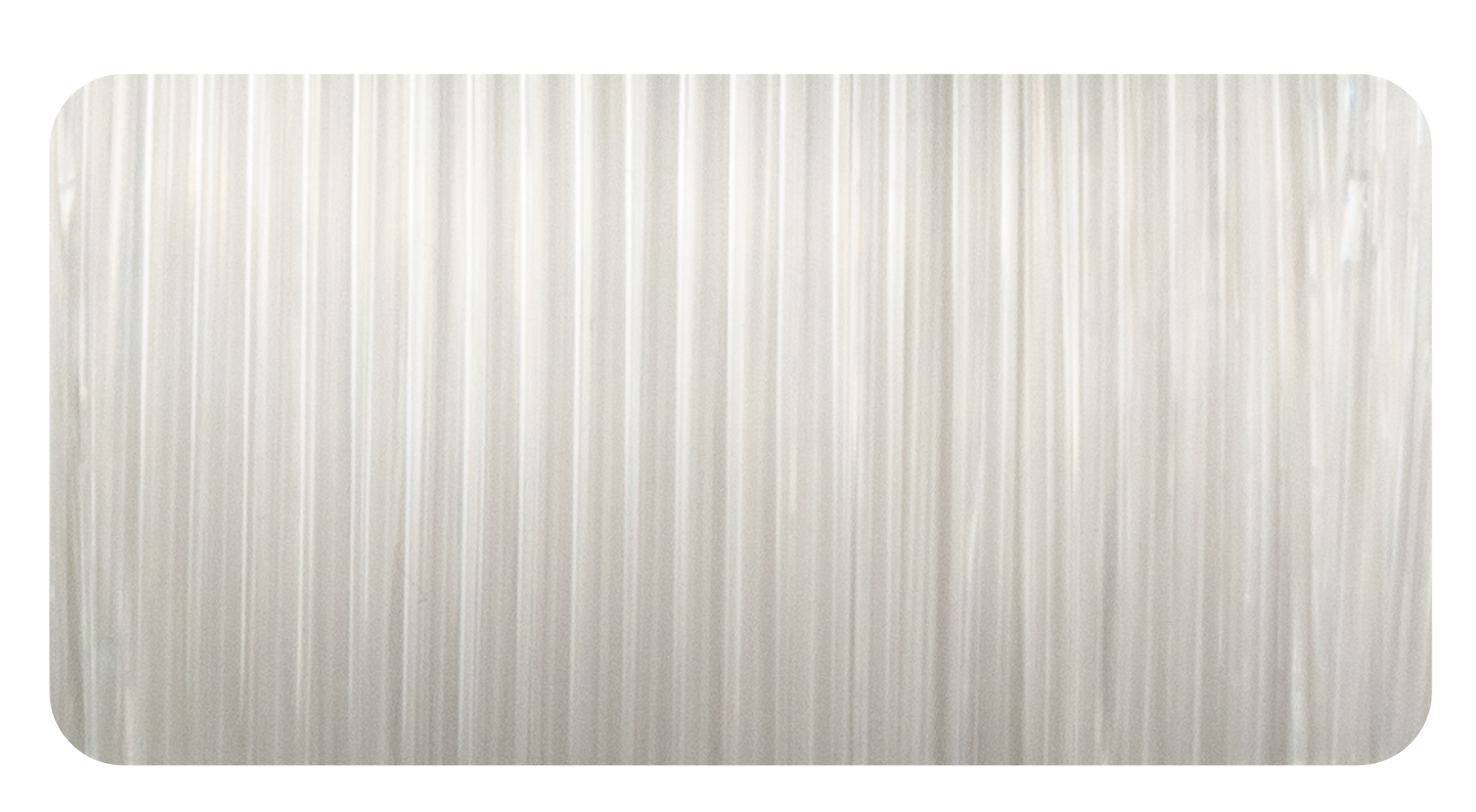

Transparent

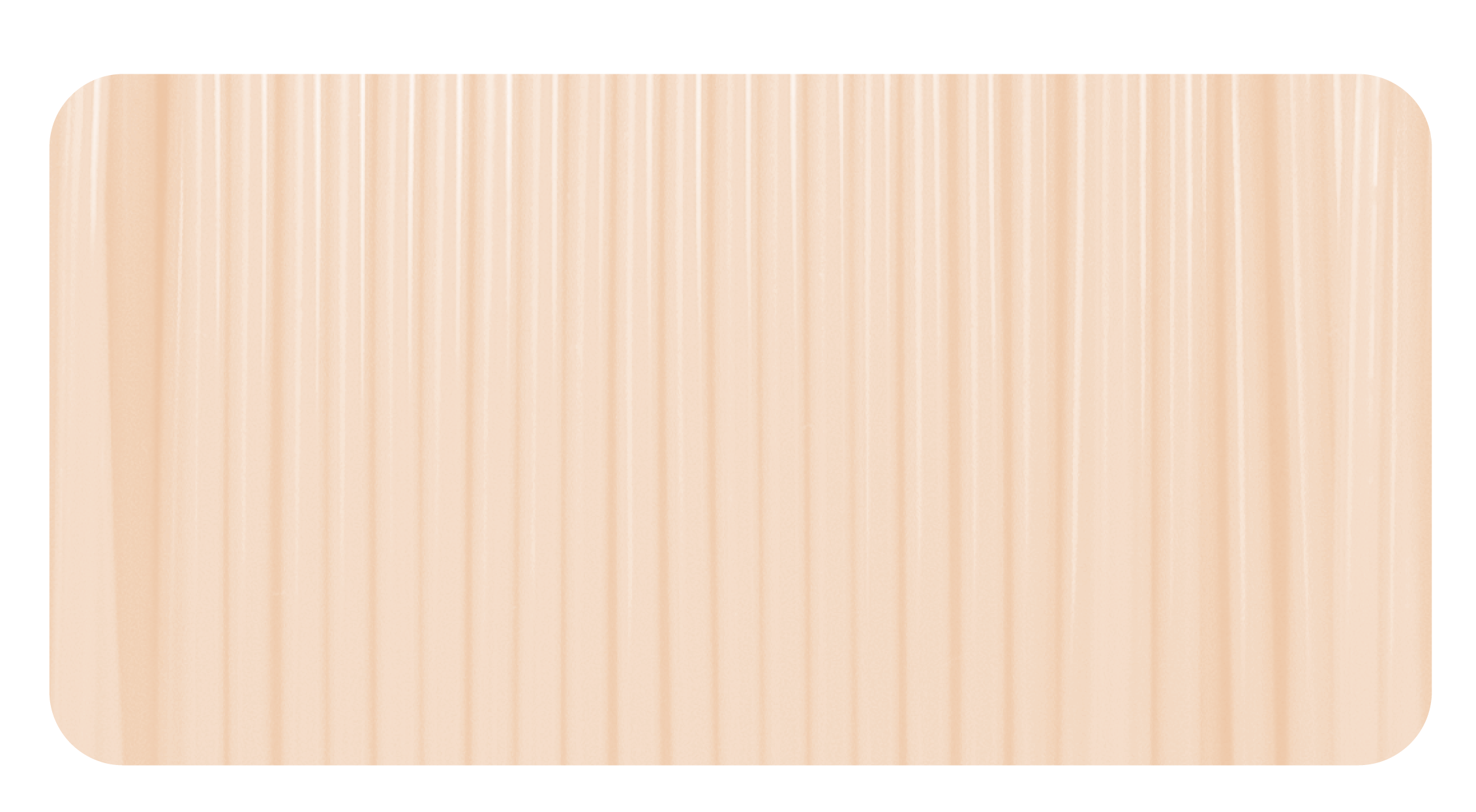

Skin Color
Mint Green

Lake Blue
Orange
Cherry Blossom Pink
Transparent
Skin Color
Mint Green

Violet
Magenta
Green

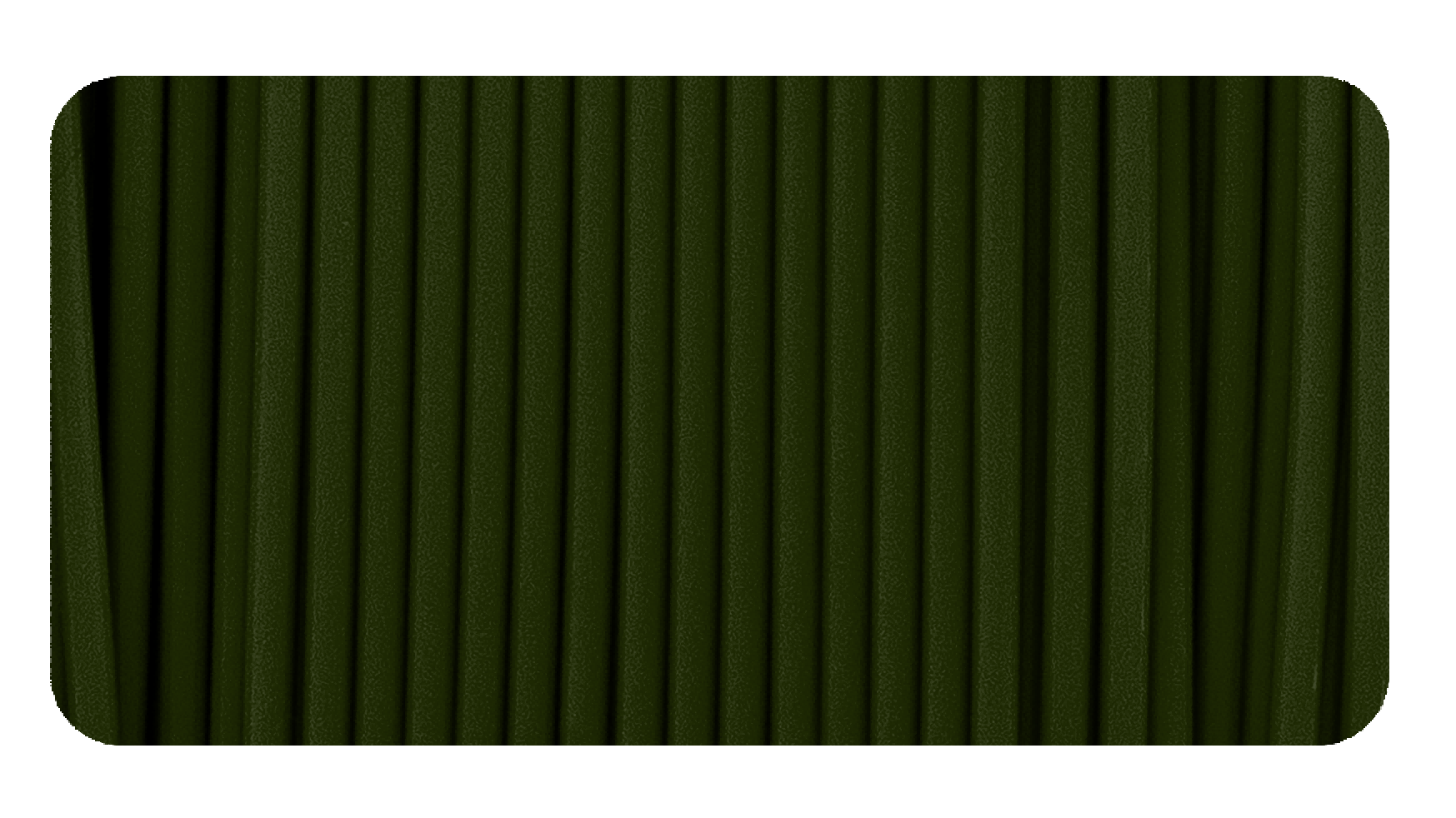

Army Green
Black Nickel
Beige

Violet
Magenta
Green
Army Green
Black Nickel
Beige

Olive Green

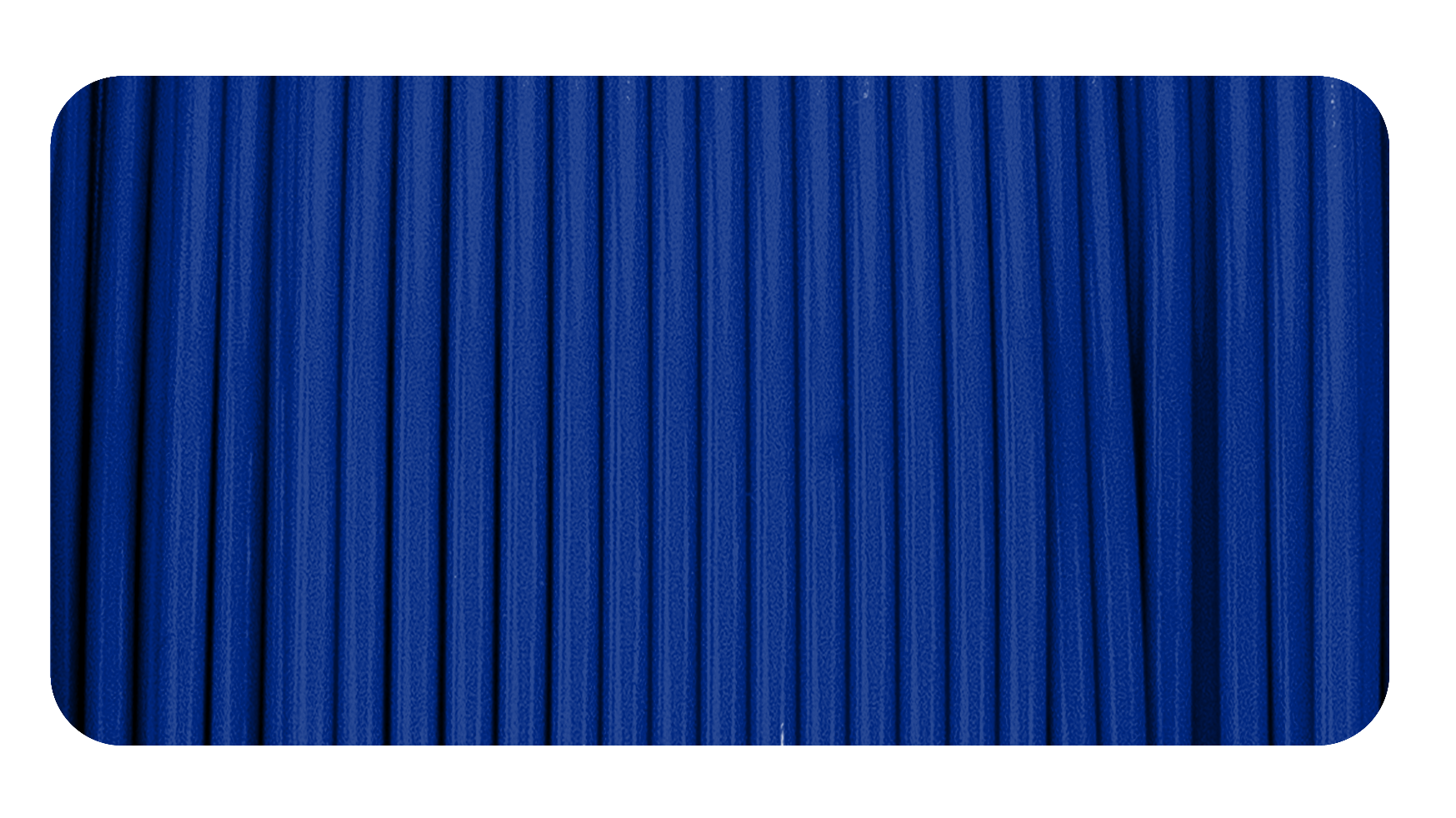

Klein Blue

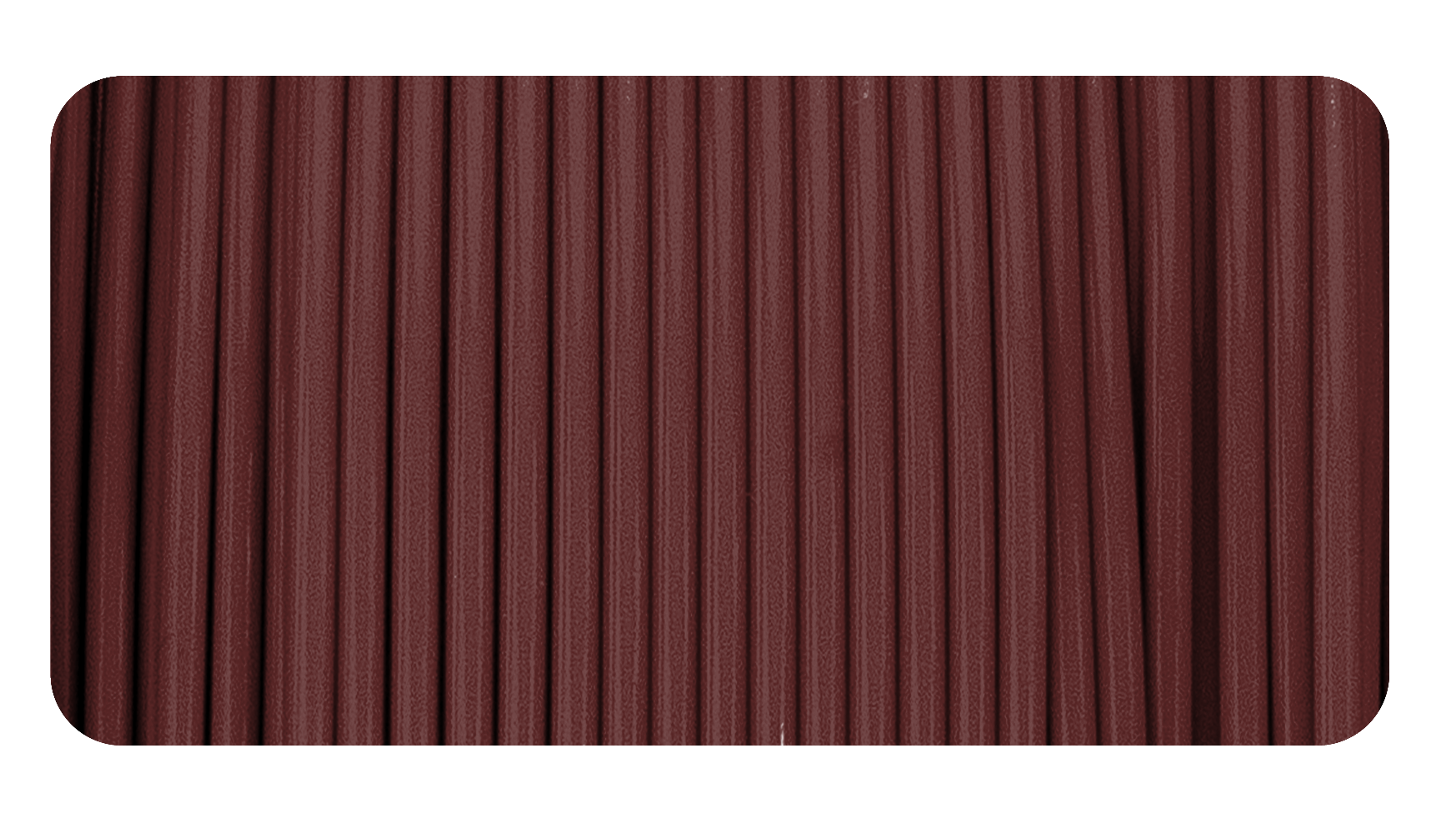

Red Wine
Coffee Color

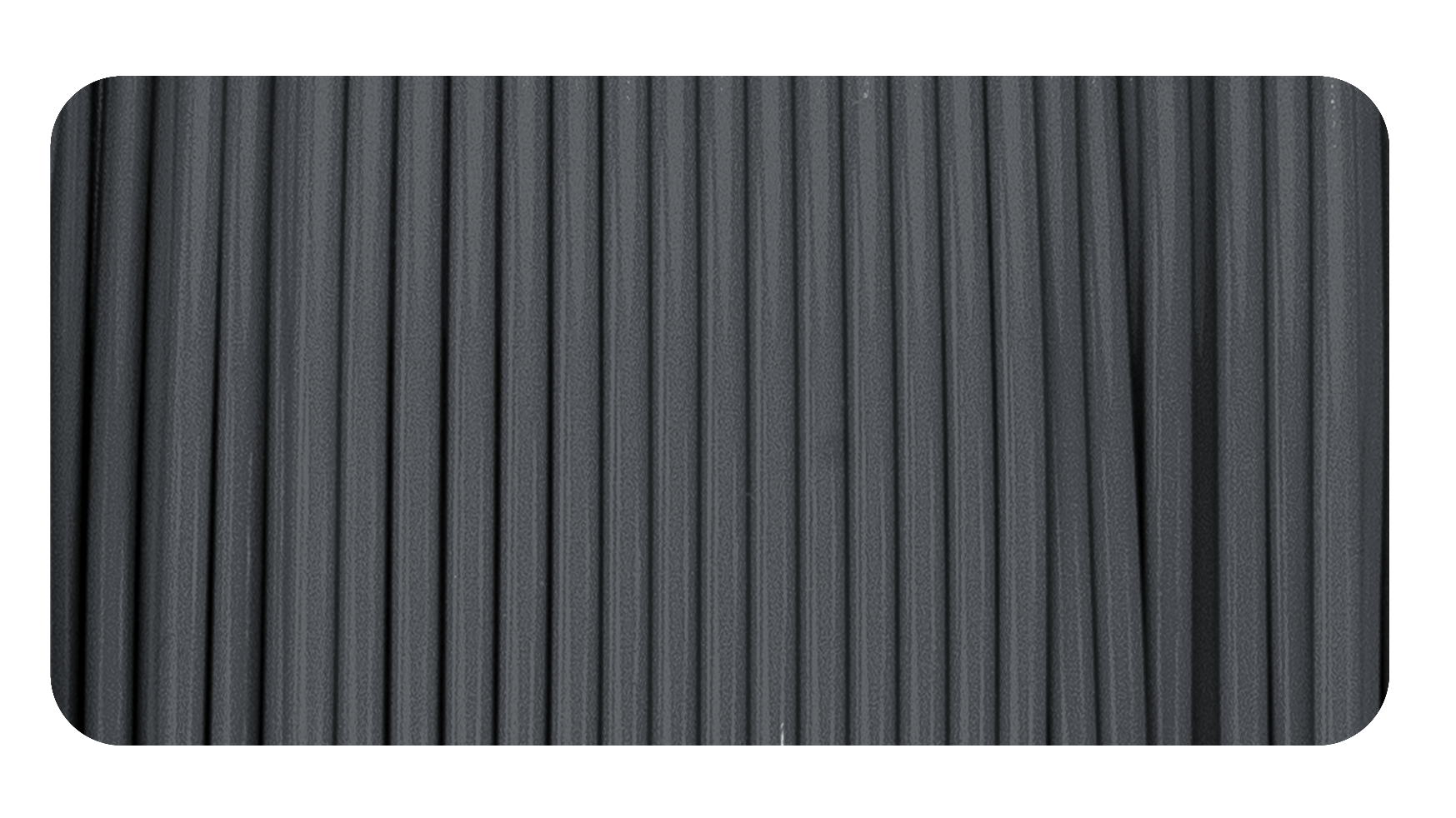

Dark Gray
Amber Gold

Olive Green
Klein Blue
Red Wine
Coffee Color
Dark Gray
Amber Gold

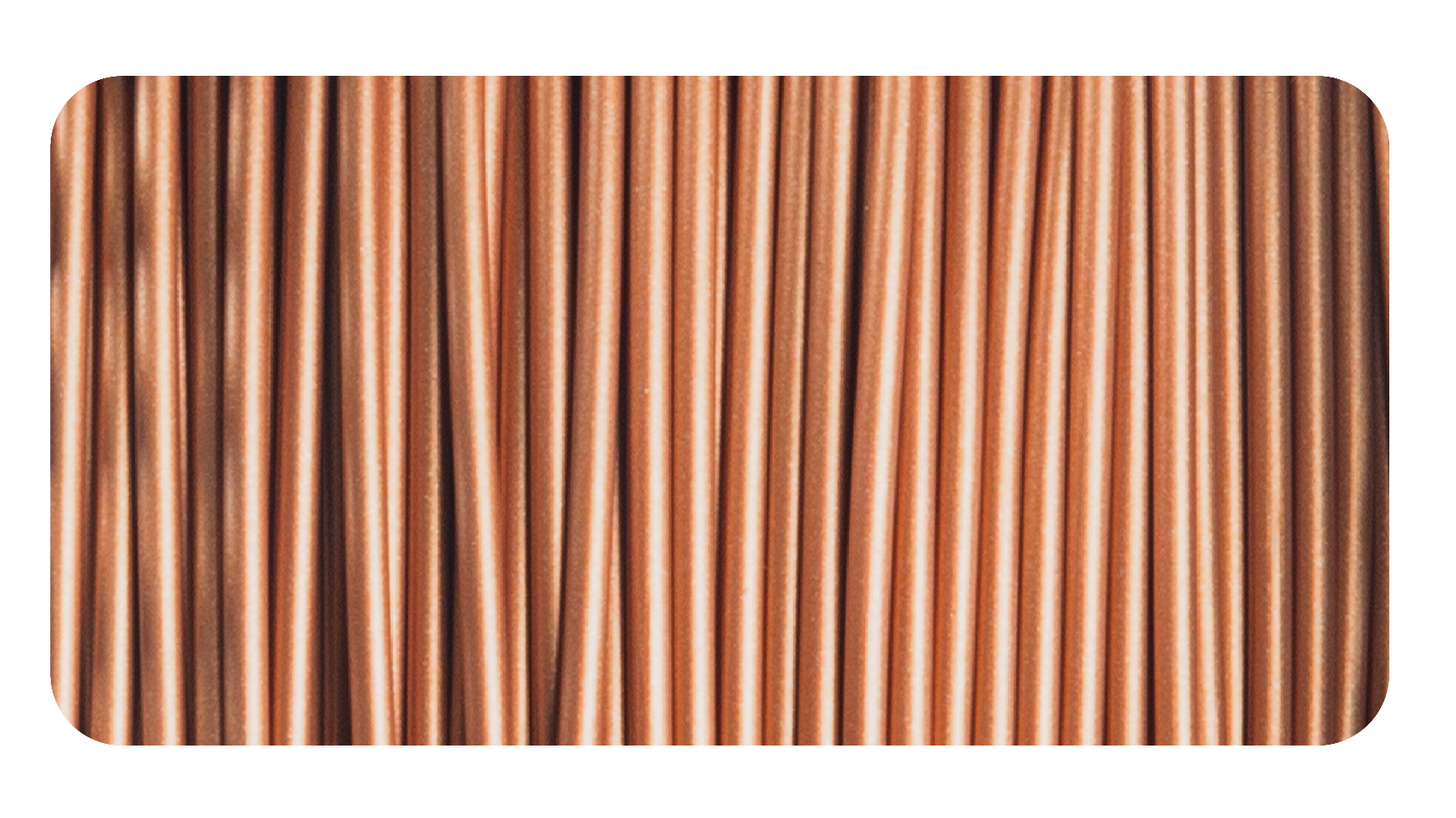

Red Copper

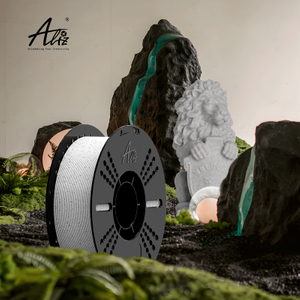

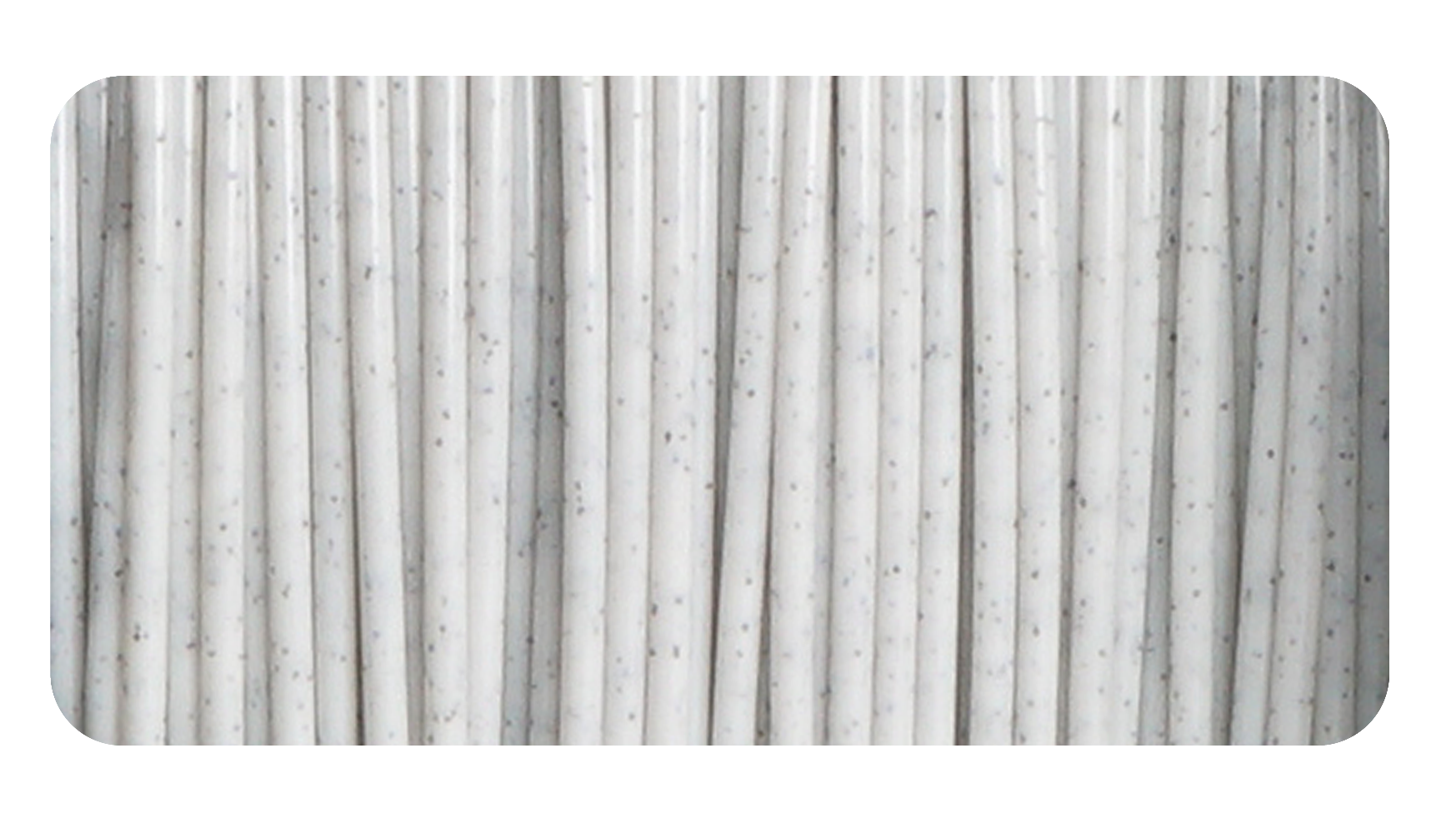

Marble

Red Copper
Marble

Mechanical Properties

Property	Testing Method	Testing Condition	Injection Molding Typical Value	3D Printing X-Y Axis Typical Value	3D Printing Z Axis Typical Value	Unit
Tensile Strength	ISO 527	50mm/min	52.5	45.2 ± 4	37.6 ± 4	MPa
Elongation at Break	ISO 527	50mm/min	66.7	11.4 ± 1.8	1.7 ± 0.5	%
Tensile Modulus	ISO 527	50mm/min	1668	1720 ± 100	1711 ± 100	MPa
Flexural Strength	ISO 178	2mm/min	76.2	68.7 ± 6.5	61.8 ± 6.5	MPa
Flexural Modulus	ISO 178	2mm/min	2280	1967 ± 100	1901 ± 100	MPa
Charpy Impact Strength	ISO 179	23℃	NB	25 ± 3.5	10.5 ± 2	KJ/m²
Izod Impact Strength	ISO 180	23℃	NB	29.8 ± 3.5	7.7 ± 2	KJ/m²

Physical Properties

Property	Testing Method	Testing Condition	Typical Value	Unit
Density	ISO 1183	Immersion	1.26	g/cm³
Melt Flow index(MFR)	ISO 1133	240℃ 2.16kg	10.0	g/10 min

Moisture Absorption

Property	Testing Method	Testing Condition	Injection Molding Typical Value	3D Printing Typical Value	Unit
Moisture Absorption	ISO 62	50%RH*23℃	0.06	0.05	%

Chemical Properties

Property	Testing Result
Weak Acid Resistance	Not Resistant
Strong Acid Resistance	Not Resistant
Weak Base Resistance	Not Resistant
Strong Base Resistance	Not Resistant
Organic Solution Resistance	Not Resistant

Thermal Properties

Property	Testing Method	Testing Condition	Injection Molding Typical Value	3D Printing X-Y Axis Typical Value	3D Printing Z Axis Typical Value	Unit
Glass Transition Temperature	DSC	10℃/min	81.6			℃
Decomposition Temperature	TGA	20℃/min	387.5			℃
Heat Distortion Temperature	ISO 75	0.45MPa	71.8	74.8	72.9	℃
Heat Distortion Temperature	ISO 75	1.8MPa	63.8	69.8	67.6	℃
Vicat Softening Temperature	ISO 306	50℃/10N	79.7	78.0	77.3	℃

Recommended 3D Printing Parameters
*Based on 0.4 mm nozzle. Printing conditions may vary with different nozzle diameters

Printing Temperature	240 – 260 (℃)
Bed Temperature	70 - 80 (℃)
Wall Layers	2 Layers
Top and Bottom Layers	4 Layers
Infill	100%
Ambient Temperature	25℃
Cooling Fan	0 - 10%
Printing Speed	30 – 50 (mm/s)
Nozzle Diameter	0.4 mm

3DPrinting Actual Parameters
*All specimens must be left at room temperature for 24 hours before testing. The parameters are based on the Bambulab PES 3D printer.

Printing Temperature	250 (℃)
Bed Temperature	80 (℃)
Wall Layers	2 Layers
Top and Bottom Layers	4 Layers
Infill	100%
Ambient Temperature	25℃
Cooling Fan	10%
Printing Speed	50 (mm/s)
Nozzle Diameter	0.4 mm
